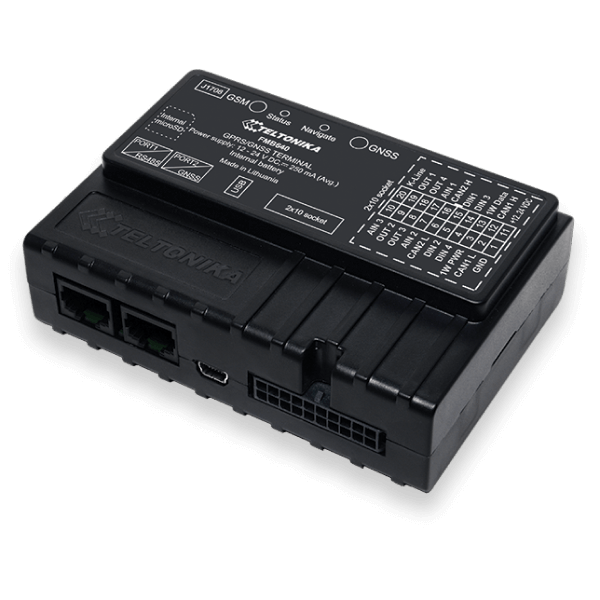

Professional device Teltonika FMB640

The Teltonika FMB640 is designed for complex solutions, where one device can do multiple tasks. FMB640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency. The terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Technology	GSM/GPRS/GNSS/BLUE-TOOTH
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Protocol compatible	NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Receiver	33/ 99 acquisition channel
Tracking sensitivity	-165 dBM
Accuracy	< 3 m
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Cellular
Technology	GSM/GPRS
2G	Quad-band 850 / 900 / 1800 / 1900 MHz
GPRS	GPRS Mobile Station Class B
Data transfer	GPRS Multi-Slot Class 12(up to 240 kbps)
Data support	SMS (text/data)
Power
Input voltage range	10 – 30 V DC with overvoltage protection
Back-up battery	550 mAh Ni-Mh, 8,4 V battery
Power consumption	At 12V < 7 mA(Deep Sleep), At 12V < 12 mA(Online Deep Sleep), At 12V < 28 mA(GPS Sleep), At 12V < 65 mA(nominal), At 12V <120 mA (GPRS)
Blue-tooth
Specification	V3.0
Supported peripherals	Headset, Configuration
Interface
Digital Inputs	4
Digital Outputs	4
Analog Inputs	3
1-Wire temperature sensors	6
1-Wire iButton	1
RS232	2
RS485	1
CAN j1939	2
J1708	1
K-line	1
LVCAN	1
GNSS antenna	External High Gain
GSM antenna	External High Gain
USB	2.0 Mini-USB
LED indication	2 status LED lights
SIM	2x SIM Card (Dual-SIM)
Memory	1MB internal flash memory and external Micro SD card
Physical specification
Dimensions	104,1 x 76,8 x 31,5 mm (L x W x H)
Weight	197 g
Operating environment
Operating temperature	-25 °C to +55 °C
Storage temperature	-40 °C to +70 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP41
Features
Sensors	Accelerometer
Scenarios	Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification.
Functionalities	Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking, Profiles, Voice call
Supports	Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, MVC300 camera, LV-CAN, ALL-CAN, CAN FMS (J1939, J1708), K-line data
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update	FOTA, USB cable
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, Events, DOUT control, Debug
Time Synchronization	GPS, NITZ, NTP
Fuel monitoring	LLS (Analog), LV-CAN, ALL-CAN, CAN FMS, RS232/485 Fuel sensor
Ignition detection	Digital Input, Accelerometer, External Power Voltage



Click here to download the instruction manual in English.
