Teltonika FMB650 2 SIM RS232 GPS Tracker 4G LTE Cat 1 for advanced applications with high capacity battery backup and external antennas
€51.00
We offer you factory prices in whatever quantity you need.
Ιn this price it is included:
* No minumum order
* mix models per shipping.
* Extra discount -5% discount in all African countries.
* Free tracking for one year
*Two year warranty
* Free support fo configouration the devices
Contact with us to offer you a special offer !!
-
European professional GPS Tracker location and tracking device
Teltonika FMB650 is a Gps tracker device with many features and can satisfy all the needs that a business may have. With this device, you can also be constantly informed about the driver’s driving behavior, such as sudden starts – sudden braking – sharp turns. It also has the ability to store up to 47,000 coordinates and once the device is reconnected to the mobile network to send the stored data via GPRS. So you are not going to have data loss (vehicle coordinates, sensor data, etc.).

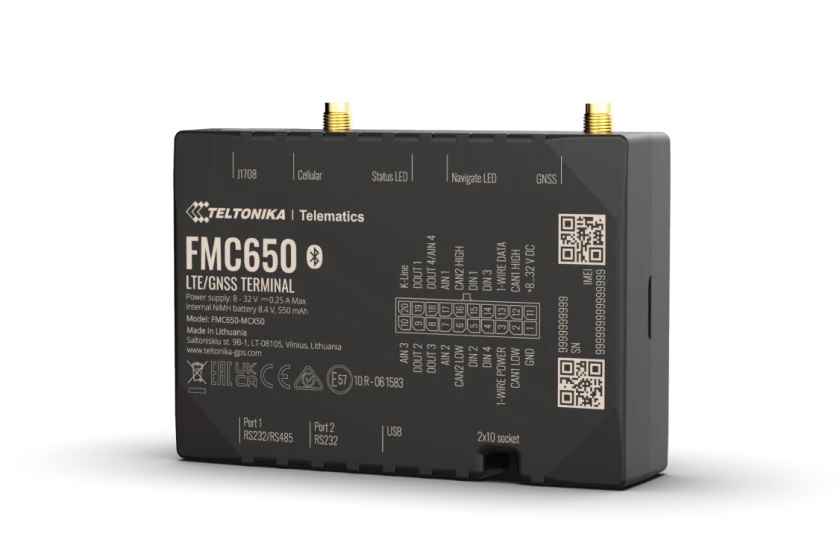

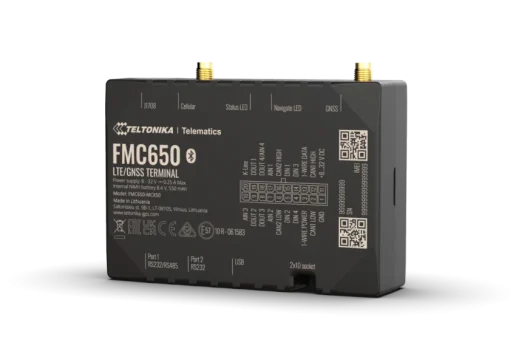

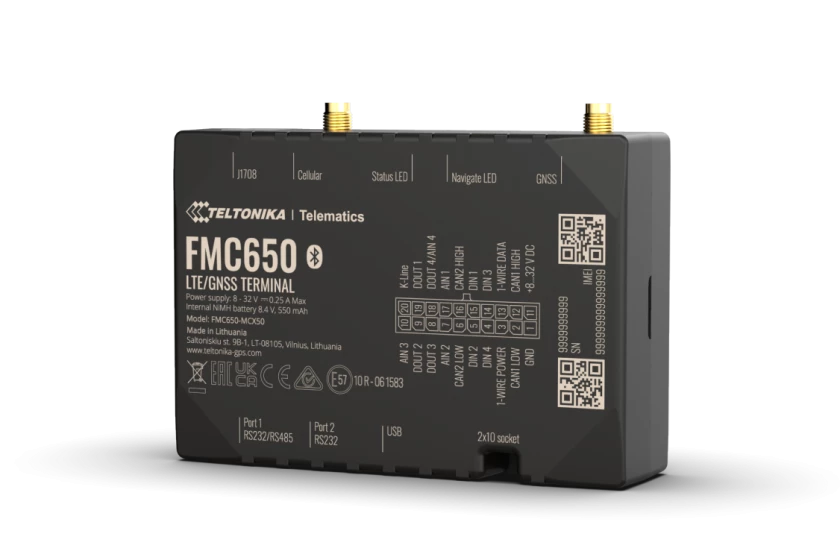

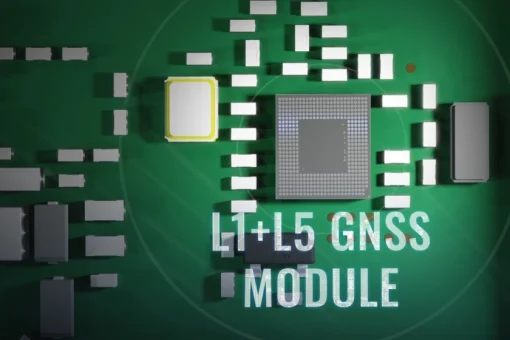

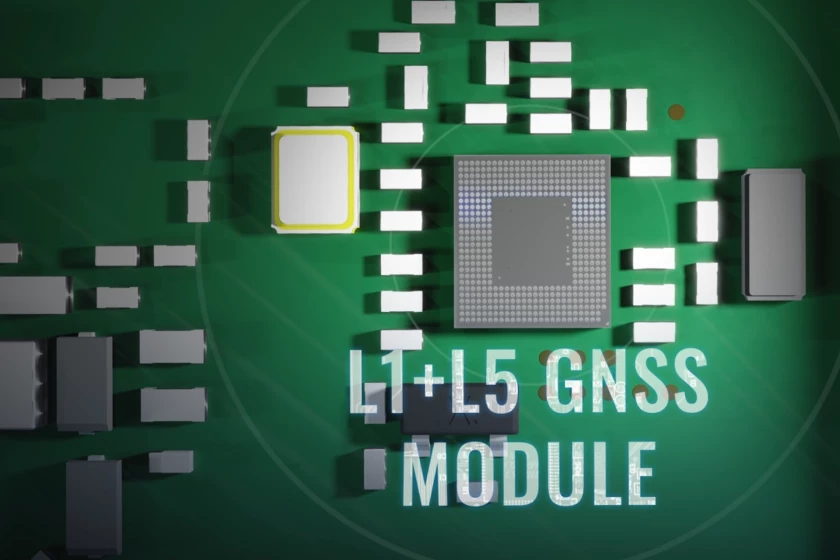

Teltonika’s FMC650 Gps tracker is a direct successor to the current most popular 4G PROFESSIONAL series device – the FMC640. Both of these devices are supported with GpsGate. Teltonika’s FMC650 has 4G (LTE Cat 1) network coverage, including 2G (GSM) alternative compatibility. The device is equipped with GNSS and LTE modules, external GNSS and LTE antennas. The tracker stands out with its separate GNSS data collection unit and best-in-class positioning accuracy. This is possible with L1 and L5 band support. Separate GNSS modules improve accuracy, making the FMC650 more suitable for integrating free-flow electronic toll systems. Interchangeable CAN terminators allow you to use the device in multi-node CAN networks. Finally, it can be powered via USB for an easier configuration process. Ideal for maximizing your fleet performance in applications such as international logistics, refrigerated transport, agriculture, construction and mining, security and emergency services and more!
It has a rechargeable battery and a special controller for energy management. There is also an option to use an external backup battery so that it can operate up to 48 hours.
You will know where your stopped vehicle went and for how long as well as the entire route from the start to the end of the shift.
Special monthly offer with a 30.00 euro discount
PRODUCT SPECIFICATIONS
ModuleName
FMC650-MBX50L MeiG SLM320-PE2C,
FMC650-MCX50: MeiG SLM320-L16A
Technology
LTE (CaT1) / 2G (GSM / GPRS)
GNSSModule name
Airoha AG3335MB
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1 and L5 dual-band GNSS receiver
Tracking sensitivity
-165dBm
Position Accuracy
< 2.5 m CEP
Hot start
1.5 s
Warm start
< 25 s
Cold start
< 32 s
CellularTechnology
LTE Cat 1, GSM
2G bands
FMC650-MBX50: B2/B3/B5/B8
FMC650-MCX50: B2/B3/B5/B8
4G LTE bands
FMC650-MBX50:
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
FMC650-MCX50:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
Data transfer
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Transmit power
Class 4 for GSM850/900: 31±2dBm
Class 1 for GSM1800/1900: 30±2dBm
Class 3 for LTE-TDD: 23±3dBm
Class 3 for LTE-FDD: 23±3dBm
Bluetooth LE: up to 6.64 dBm
PowerInput voltage range
8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection
Internal Back-up battery
550 mAh Ni-Mh, 8.4 V battery
Internal fuse
3A, 125V
2 W max. Current consumption at 12 V
GPRS: average 60 mA
Nominal: average 45 mA (with no load)
GNSS sleep: average 32 mA
Deep Sleep: average 4 mA
Online Deep Sleep: average 11 mA
Full Load/Peak: <0.25A Max
2 W max. Current consumption at 24 V
GPRS: average 35 mA
Nominal: average 24 mA (with no load)
GNSS sleep: average 17 mA
Deep Sleep: average 2.9 mA
Online Deep Sleep: average 7 mA
Full Load/Peak: <0.25A Max
Bluetooth®Name
Blue NRG232
Specification
5.0 + LE
Supported peripherals
Temperature and Humidity sensor, Universal BLE sensors support
Physical specificationDimensions
104.1 x 76.8 x 31.5mm (L x W x H)
Weight
197 g
Operating environmentOperating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Storage temperature (with battery)
-20 °C to +45 °C
Ingress Protection Rating
IP41
Battery storage temperature
-20 °C to +45 °C
InterfaceDigital Inputs
4
Digital Outputs
4
Analog Inputs
4
1-Wire
1
RS232
2
RS485
1
CAN J1939
2
J1708
1
K-line
1
GNSS antenna
External High Gain (L1+L5)
Cellular antenna
External High Gain
USB
2.0 Mini-USB – device can be powered by USB for easier device configuration
LED indication
2 status LED lights
SIM
2x SIM Card (Dual-SIM) or 1x eSIM
Memory
16 MB internal flash memory and external Micro SD card up to 32GB
Switchable CAN terminals
Supported on CAN1 and CAN2 lines
FeaturesSensors
Accelerometer
Scenarios
Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals

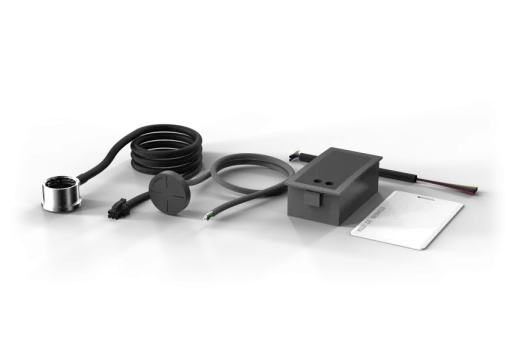

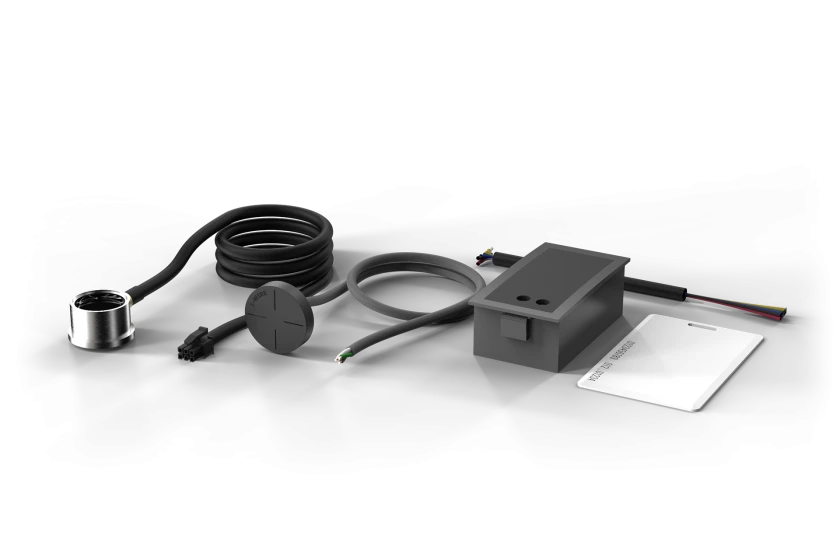

Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232 ), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection
Digital Input, Accelerometer, External Power Voltage
RS232 Modes
Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes
Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
Certification & approvalsModule Name Teltonika FMB640 Technology GSM/GPRS/GNSS/BLUE-TOOTH GNSS GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS Protocol compatible NMEA, GGA, GGL, GSA, GSV, RMC, VTG Receiver 33/ 99 acquisition channel Tracking sensitivity -165dBm Accuracy < 3 m Hot start < 1 s Warm start < 25 s Cold start < 35 s Cellular Technology GSM/GPRS 2G Quad-band 850 / 900 / 1800 / 1900 MHz GPRS GPRS Mobile Station Class B Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps) Data support SMS (text/data) Power Input voltage range 10 – 30 V DC with overvoltage protection Back-up battery 550 mAh Ni-Mh, 8.4 V battery Power consumption At 12V < 7 mA(Deep Sleep), At 12V < 12 mA(Online Deep Sleep), At 12V < 28 mA(GPS Sleep), At 12V < 65 mA(nominal), At 12V <120 mA (GPRS) Bluetooth Specification V4.0 Supported peripherals Hands set, Configuration, Temperature and Humidity sensor Interface Digital Inputs 4 Digital Outputs 4 Analog Inputs 4 1-Wire temperature sensors 6 1-Wire iButton 1 RS232 2 RS485 1 CAN j1939 2 J1708 1 K-line 1 LVCAN 1 GNSS antenna External High Gain GSM antenna External High Gain USB 2.0 Mini-USB LED indication 2 status LED lights SIM 2x SIM Card (Dual-SIM) Memory 1MB internal flash memory and external Micro SD card Physical specification Dimensions 104.1 x 76.8 x 31.5mm (L x W x H) Weight 197 g Operating environment Operating temperature -25 °C to +55 °C Storage temperature -40 °C to +70 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating IP41 Features Sensors Accelerometer Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification. Functionalities Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking, Profiles, Voice call Supports Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, MVC300 camera LV-CAN, ALL-CAN, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep Configuration and firmware update FOTA Web, FOTA , USB cable SMS Configuration, Events, DOUT control, Debug GPRS commands Configuration, DOUT control, Debug Time Synchronization GPS, NITZ, NTP Fuel monitoring LLS (Analog), LV-CAN, ALL-CAN, CAN FMS, RS232/485 Fuel sensor, Ultrasonic level sensor Ignition detection Digital Input, Accelerometer, External Power Voltage Certification & Approvals Regulatory Declaration of IMEI assignment
Allows to put 2 SIM cards (can be from different operators) for internet connection
Allows device to work without external power source
Quad core ARM Cortex A7 processor

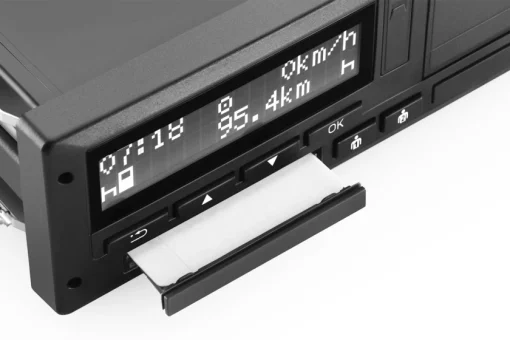

Tachograph data download helps user to gather tachograph information remotely
Blue-tooth is a wireless technology standard for exchanging data over short distances
RS-232 and RS-485 is a standard for serial communication transmission of dataTeltonika supports ContiPressureCheck™ One of the main fleet management aims is to reduce operational costs for end customers. Teltonika provides several solutions for that. Where one of the latest additions is Continental ContiPressureCheck™ support, which greatly extends tire exploitation times, by constantly monitoring tires’ pressure, temperature and alarm. HOW DOES IT WORK?
Step 1 Wireless pressure sensors are mounted inside tires ensuring accurate information that is sent to the Central Control unit (CCU). Step 2 FMB650 connects to the CCU via common truck CAN line and reads all the main data about pressure, temperature, alarm and more. Step 3 Tracker sends all the received information data to server, where it can be further analyzed and decisions which increase efficiency can be made. BENEFITS We are happy to collaborate with market leaders to provide best value for our customers: Live TPMS data TPMS live data helps to ensure correct tire pressure which is essential for car safety, handling and comfortable driving. Extended lifetime An accurate tire pressure ensures tire-to-road adhesion which increases tires lifetime period. Fuel economy An accurate tire pressure reduces fuel consumption and decreases CO 2 emission.
