Eye beacon standard atex Bluetooth® ID beacon to keep an eye on your assets teltonika Beacon can work from one battery up to 10 years.
€24.00

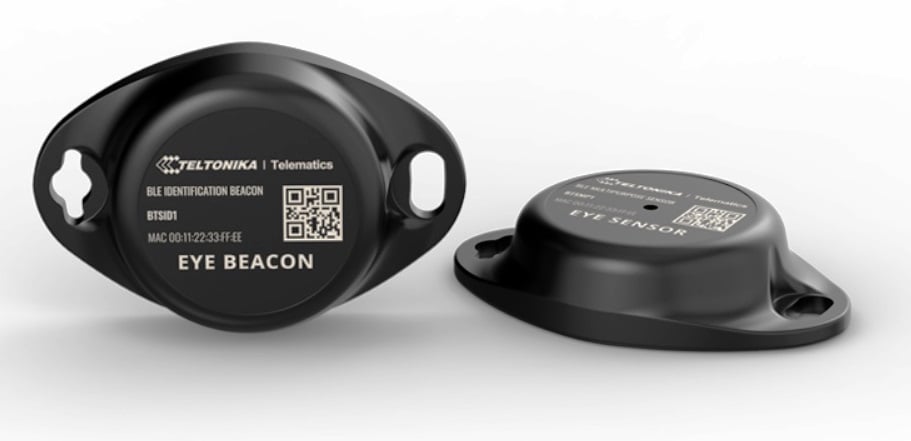

EYE BEACON STANDARD – ATEX
Bluetooth® ID beacon to keep an eye on your assets
Teltonika is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE beacons extends covered business cases: now you can monitor assets, trailers and various equipment, simplify driver authentication solution. Additionally, beacons enable indoor tracking where GPS is not available. Bluetooth beacons are small signal transmitters with configurable signal strength and data send intervals. Beacon can work from one battery up to 10 years.
many models (9) depending on the needs of the business
PRODUCT SPECIFICATIONS
Beacon ID
Yes
Sensors

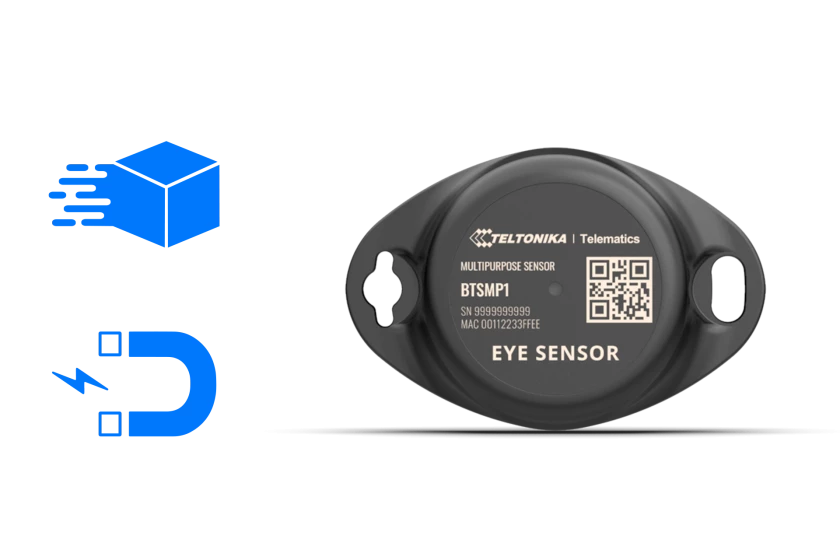

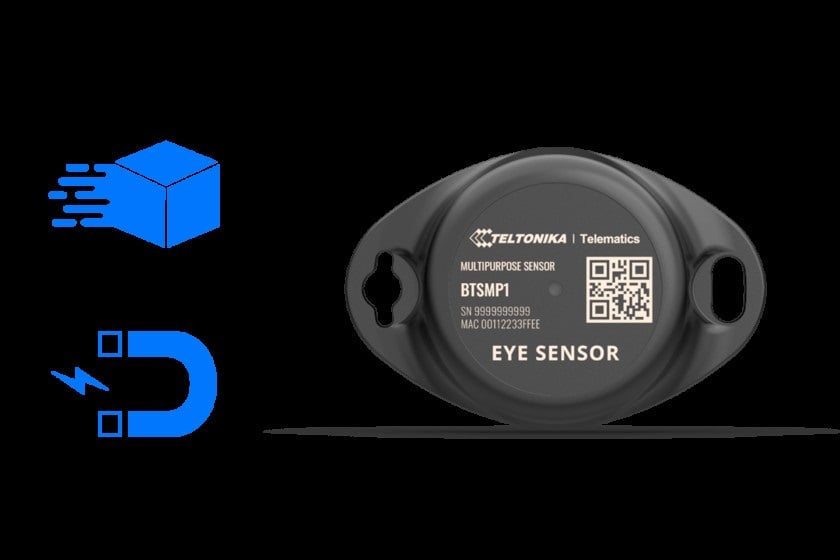

Magnet detection
Scenarios
Tool tracking, RSSI indoor tracking, Equipment tracking, Mobile objects tracking, Medical equipment tracking, Smart agriculture, Smart manufacturing
Sleep mode
Hibernate
Configuration and firmware update
EYE APP
Microcontroller
ST Microelectronics BlueNRG-2
Bluetooth operating frequency
2.402 – 2.480 GHz
Bluetooth antenna gain (peak)
1.2dBi
Bluetooth®
Bluetooth® 4.2
Range
80 m
Transmission power level
Up to 8 dBm
Sensitivity
-88 dBm
Model
CR2450
Type
Lithium, Manganese Dioxide (Li/MnO2)
Capacity
600 mAh
Replaceable
No
Battery life
- Up to 4 years (Tx=2dBm; interval 3s)
- Up to 8 years, (Tx=2 dBm; interval: 5s), DEFAULT
- Up to 10 years (Tx=2dBm; interval 10s)
Dimensions
56,6 x 38 x 13 mm (L x W x H)
Weight
18 g
Ingress protection
IP67
Mounting
Two holes to screw/leash/strip, tape
Marking
Available branding customisation upon request
Humidity (non-condensing)
From 0% to 100%
Operational temperature
-20°C / +60°C (-4°F / +140°F)
iBeacon
Yes*
*EYE APP on iOS doesn’t show devices with iBeacon protocol
Eddystone
yes
Sensors (custom)
Yes
Certificates
E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL
