BENEFITS OF LV-CAN200
Access to CAN Bus data enables fleet operators to report on a wide range of information. You can effectively identify areas of improvement within their vehicle operation to drive down overheads and minimize environmental impact.
TECHNICAL CHARACTERISTICS
| Technical Data | |
| External module voltage | 9 ÷ 63,5 V |
| Current draw on standby | 0,40 mA(at 12 V voltage), 0,33 mA(at 24 V voltage) |
| Current draw when working | 23,50 mA(at 12 V voltage), 11,5 mA(at 24 V voltage) |
| Operating temperature range | -40°C ÷ +85°C |
| Dimensions | 41 x 33 x 14,5 mm |
| Weight | 55 g |
Click here to view the Flyer in English
Click here to view the available options in English.

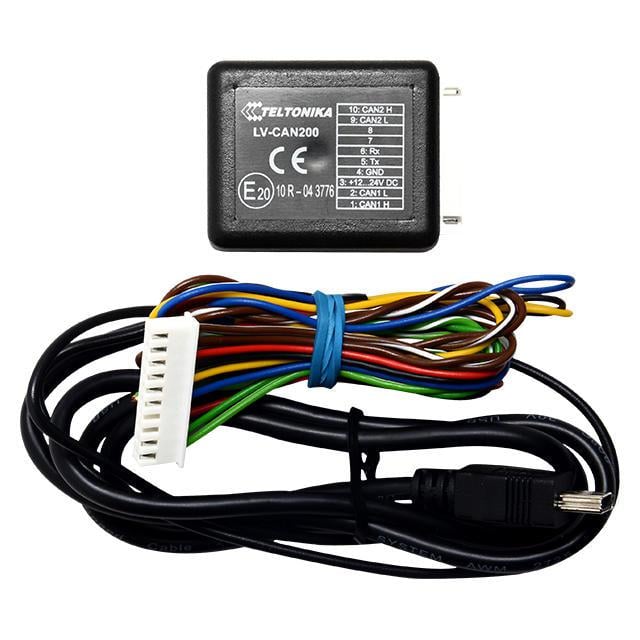

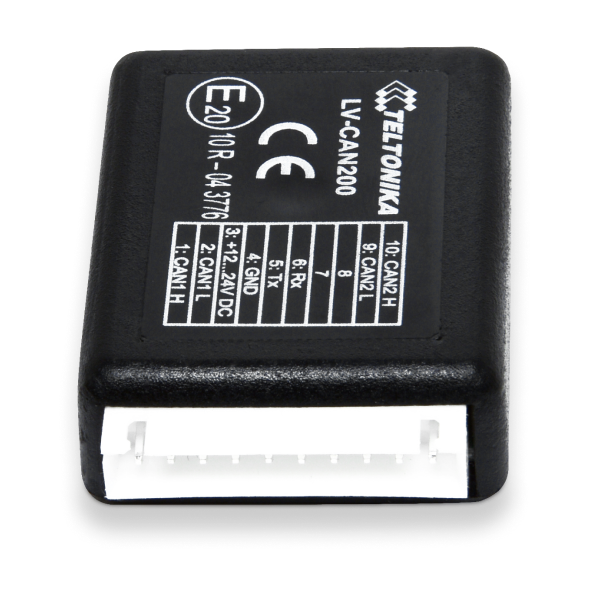

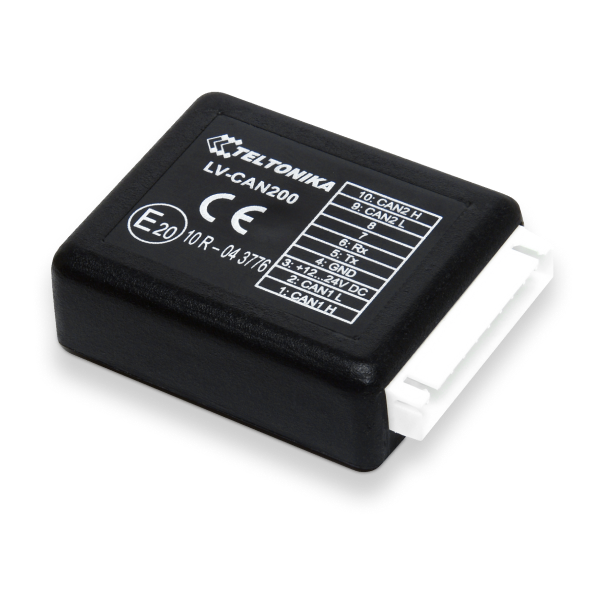

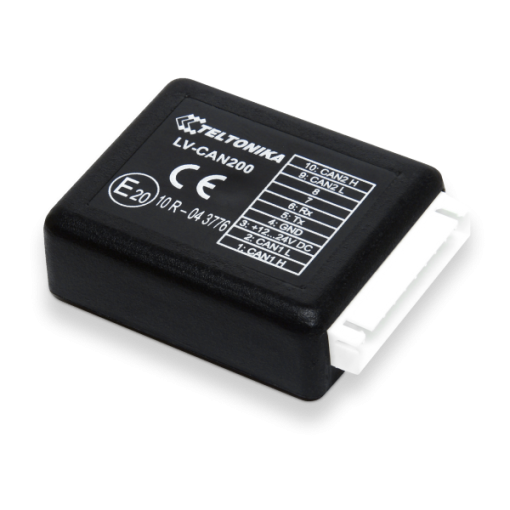

- LV-CAN200 is designed to acquire CAN data from light vehicles
- FM11YX or FM5300* GNSS/GSM Terminal, used with LV-CAN200 Adapter, will be able to collect and send vehicle data
- LV-CAN200 supports more than 1000 models of cars
- Readable data:**
- Vehicle Driven Distance
- Total fuel consumption
- Fuel level (Dashboard)
- Engine speed (RPM)
- Vehicle speed (wheel)
- Acceleration position
- ALLCAN300 is designed to acquire CAN data from any kind of transport (light vehicles, trucks, buses, agriculture transport, special transport)
- FM11YX GNSS/GSM Terminal, used with ALLCAN300 Adapter, will be able to collect and send vehicle data
- ALLCAN300 supports more than 1500 models of vehicles
- Supported OnBoard computer data:*
- Ignition indication
- Vehicle mileage
- Vehicle speed
- Total fuel consumption
- Fuel level (Dashboard)
- Acceleration position
- Engine temperature
- Engine working
- Engine lifetime
- Alarm
- Driver’s seat belt
- Passenger’s seat belt
- Parking
- Airbag status
- Check engine warning
- Low fuel warning
- Oil pressure / level
- Rear left door indication
- AND MANY MORE….
