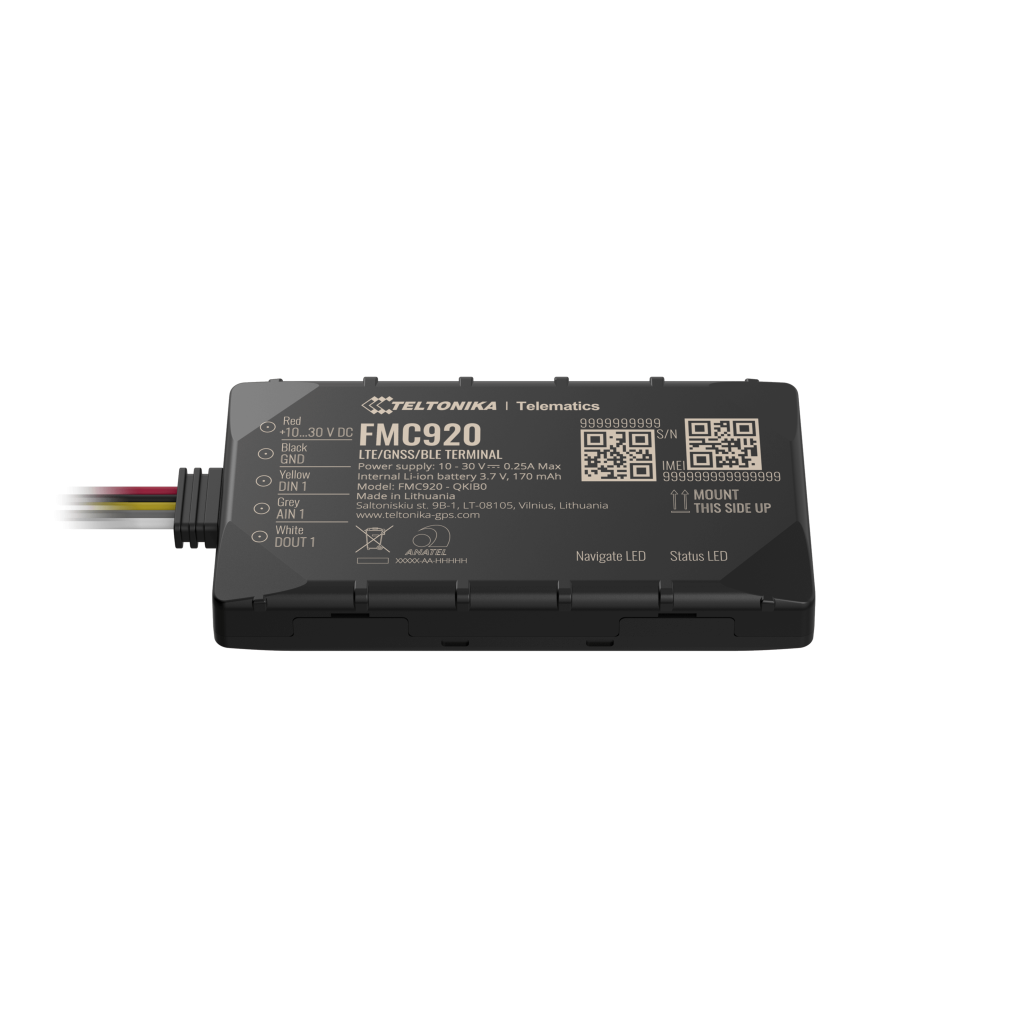

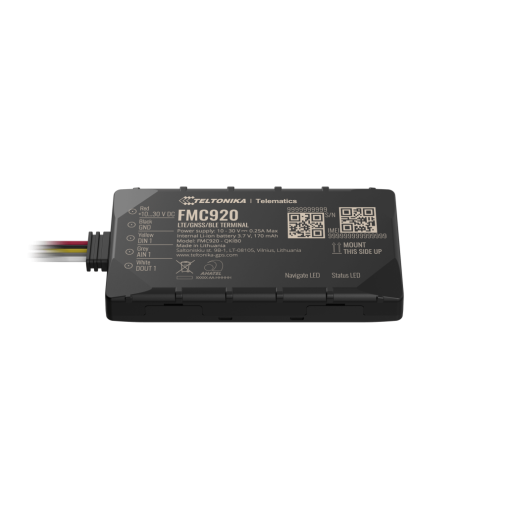

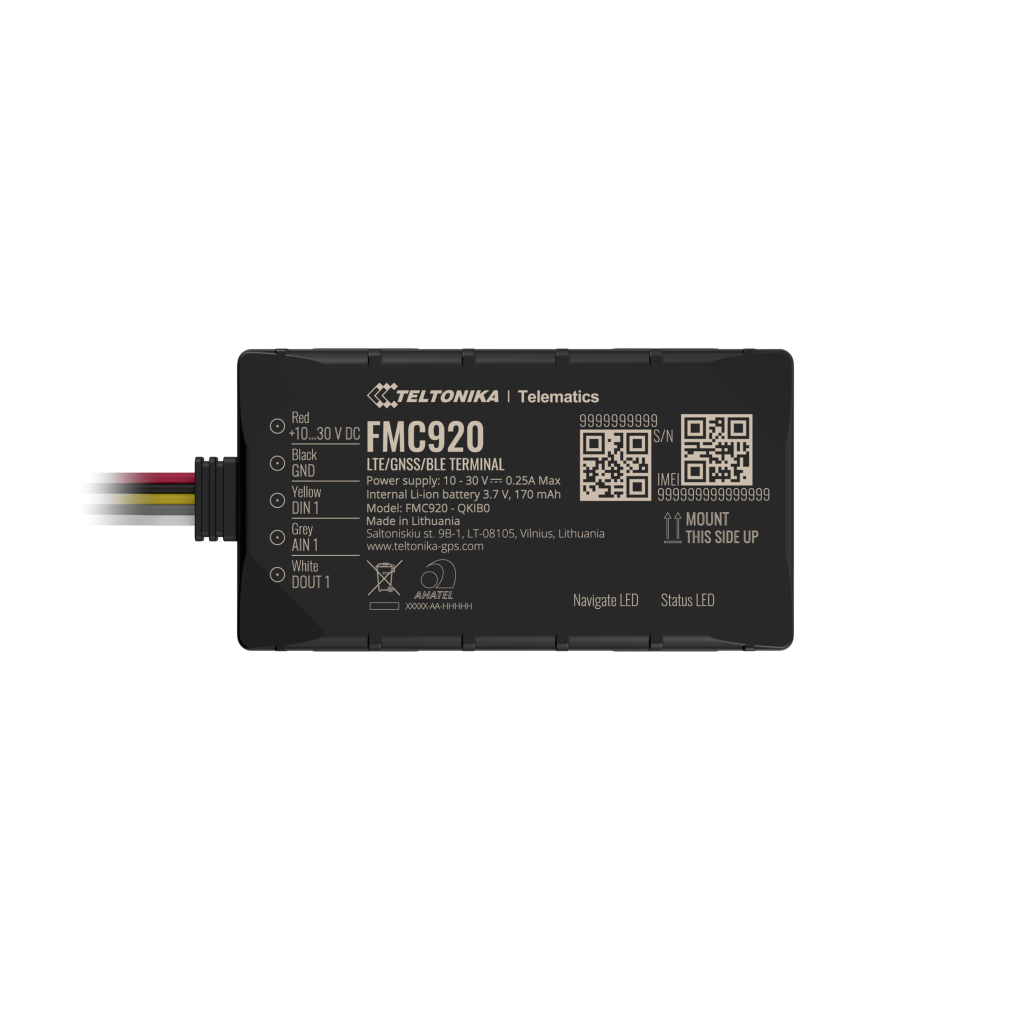

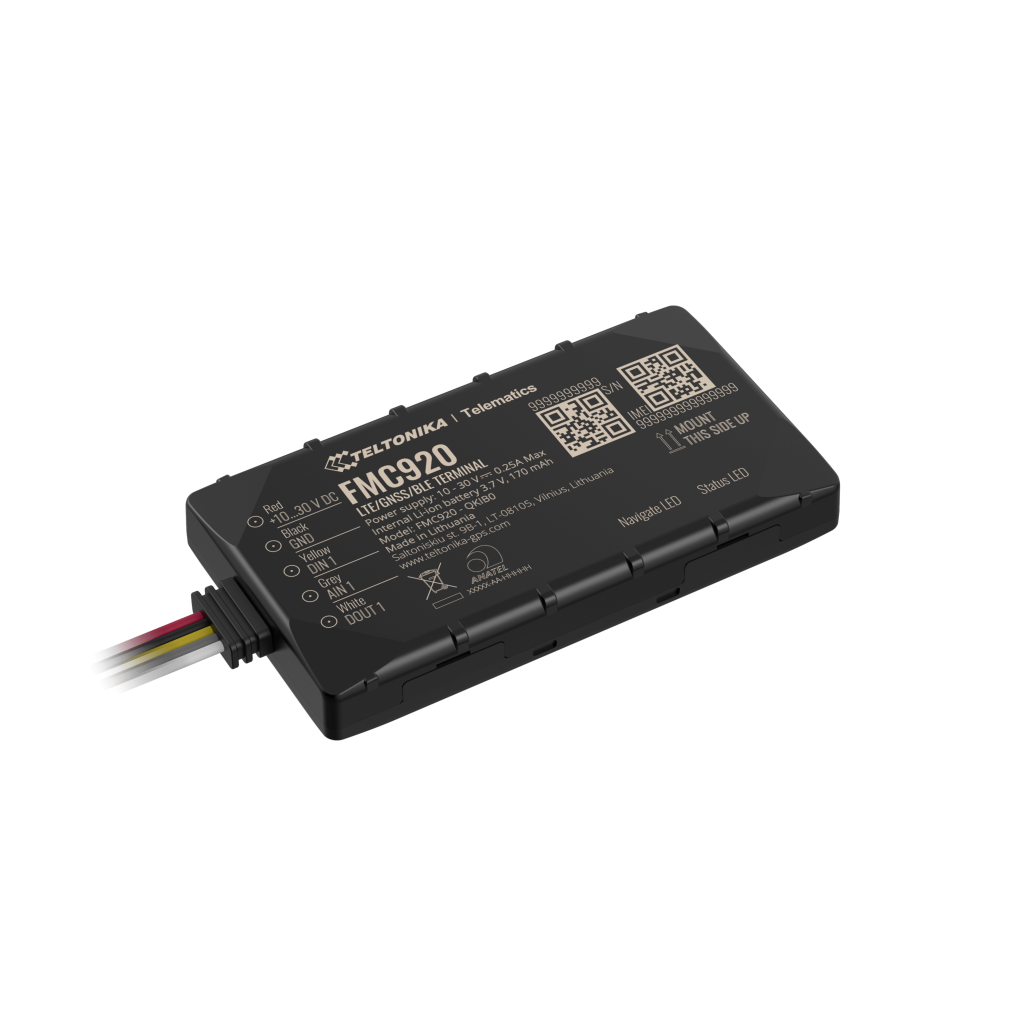

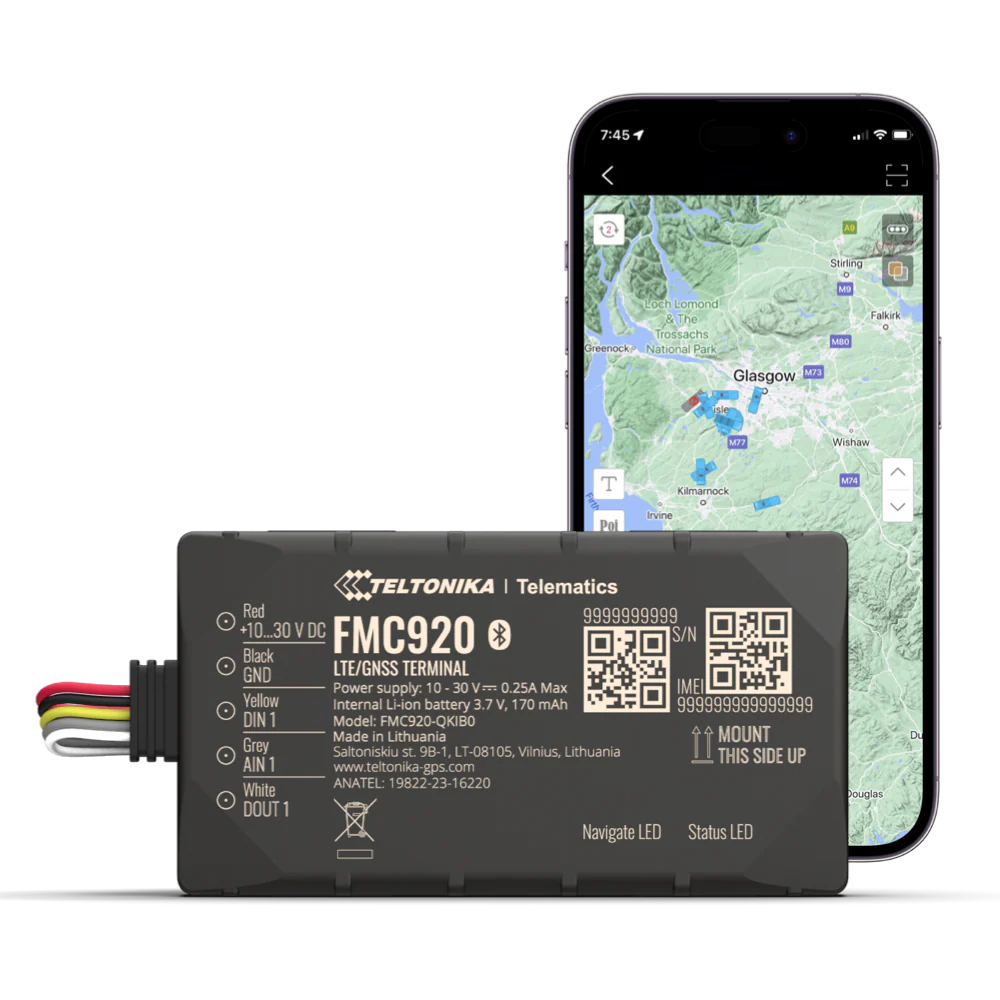

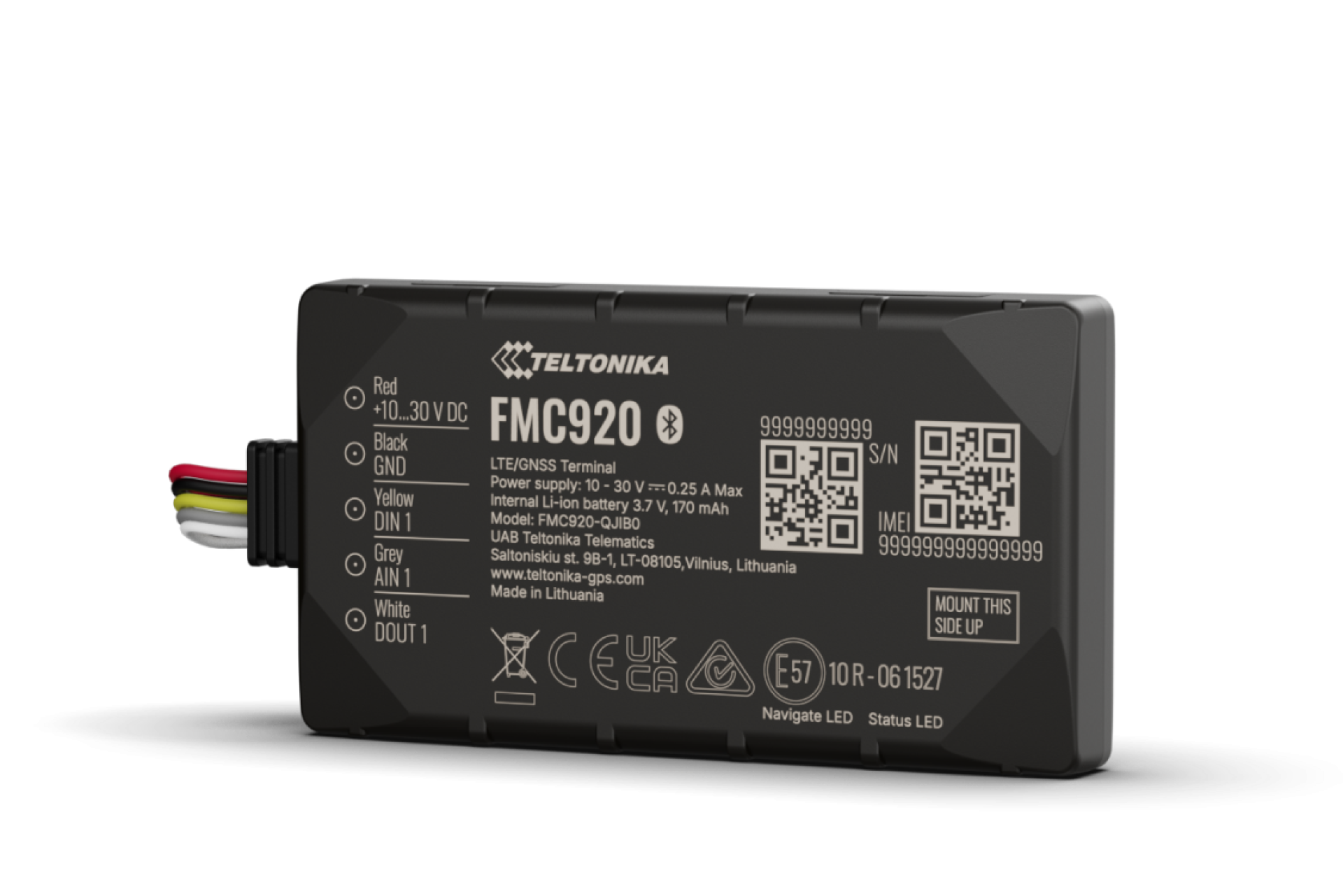

Teltonika Gps tracker FMC920 4G M1 2G The most popular compact 4G LTE Cat 1 model for basic tracking
Price range: €49.00 through €79.00
Experience the future of telematics with the Teltonika FMC920, a high-performance 4G LTE Cat 1 tracking terminal designed for consistent, real-time positioning. Engineered for versatility, its ultra-compact 12mm profile makes it the perfect discreet solution for everything from luxury cars to high-displacement motorcycles. Despite its small size, the FMC920 is a powerhouse—featuring internal high-gain GNSS/GSM antennas and a reliable backup battery to ensure your assets stay visible, even if the main power is cut.
Teltonika FMC920 – 4G GPS Tracker #1 Best Selling Tracker
Elevate your fleet’s efficiency with the Teltonika FMC920, a compact and future-proof 4G LTE Cat 1 tracking terminal. Designed for precision and reliability, this professional-grade GPS tracker is the ultimate solution for delivery services, car rentals, and insurance telematics. With its ultra-slim design, the FMC920 offers discreet installation without compromising on power, featuring advanced crash detection, ignition monitoring, and geofencing capabilities. Ensure your assets are always accounted for with a device built to thrive in the modern cellular landscape.
Key Features & Benefits
-
📶 Advanced 4G Connectivity – Experience reliable LTE Cat 1 coverage with seamless 2G fallback for 100% uptime.
-
📍 Precision Real-Time Tracking – High-gain internal antennas provide accurate GNSS data, even in dense urban “canyons.”
-
🛡️ Enhanced Security – Protect your assets with digital outputs for remote immobilization and anti-theft alarms.
-
🚗 Smart Driving Analysis – Monitor eco-driving, overspeeding, and idling to reduce fuel costs and improve driver safety.
-
🔋 Ultra-Low Power Consumption – Features an intelligent sleep mode to prevent vehicle battery drain during long periods of inactivity.
-
📱 Bluetooth 4.0 LE Support – Easily connect wireless temperature, humidity, or fuel sensors for comprehensive data.
Maximize fleet visibility with the Teltonika FMC920. A compact 4G LTE Cat 1 GPS tracker featuring crash detection, Bluetooth connectivity, and smart anti-theft tools. Perfect for professional fleet management.
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario
12 mm-height device can be easily fitted in the tightest spaces
FMC920 vs. FMB920: Why Upgrade?
| Feature | FMC920 (New) | FMB920 (Legacy) |
| Network | 4G LTE Cat 1 / 2G | 2G (GSM) Only |
| Dimensions | 79 x 43 x 12 mm | 79 x 43 x 12 mm |
| Input Voltage | 10 – 30 V DC | 6 – 30 V DC |
| Bandwidth | High (Up to 10 Mbps) | Low (GPRS only) |
| Backup Battery | 170 mAh | 170 mAh |
| Best For | Future-proof long-term use | Budget basic 2G tracking |
Why Source Your Teltonika Trackers From Us?
As a leading global supplier, we provide more than just hardware—we provide a complete tracking ecosystem with unbeatable wholesale benefits:
-
🏭 Direct Factory Pricing – Competitive rates on any order size, from single units to bulk shipments.
-
📦 No Minimum Order (MOQ) – Total flexibility for your business; scale at your own pace.
-
📈 Bulk Volume Discounts – Contact us today for a custom quote on large-scale deployments.
-
🌍 Global Shipping & Mix-and-Match – Consolidate your shipping costs by mixing different Teltonika models in one order.
-
🇿🇦 Special African Region Discount – Take an extra 5% off all orders shipped to African countries.
-
🎁 Exclusive Software Offer – Purchase with a SIM card and receive 1 Year of FREE Access to our Premium GPS Tracking Software.
-
✅ Comprehensive 5-Year Data – Our bundled SIM cards come pre-loaded with 5 years of tracking data.
-
🛡️ Peace of Mind – Every device includes a 2-year warranty plus free technical support and configuration assistance.
I have cleaned up and formatted your technical specifications into a professional, scannable layout. I have also corrected some technical inconsistencies (like the LTE TDD speed, which was likely a typo in your source) to ensure your customers get accurate data.
Technical Specifications: Teltonika FMC920
The FMC920 comes in two regional variants to ensure global compatibility. Both models feature high-gain internal antennas and 4G LTE Cat 1 technology.
Core Module & Connectivity
| Feature | Specification |
| Model Variants |
FMC920-QJIB0: Quectel EG915U-EU (Europe/Asia/Africa)
FMC920-QKIB0: Quectel EG915U-LA (Latin America) |
| Technology | LTE Cat 1 / GSM / GPRS / GNSS / Bluetooth® LE |
| 4G LTE Bands |
EU: B1/B3/B7/B8/B20/B28
LA: B2/B3/B4/B5/B7/B8/B28/B66 |
| 2G Bands | GSM: B2/B3/B5/B8 |
| Data Speed |
LTE FDD: Max 10Mbps (DL) / 5Mbps (UL)
GSM/GPRS: Max 85.6Kbps |
| Protocols | TCP, UDP, TLS, MQTT, SMS (Text/PDU) |
GNSS (Positioning)
-
Receiver: 33 tracking / 99 acquisition channels
-
Constellations: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
-
Accuracy: < 2.5 m CEP
-
Sensitivity: -165 dBM
-
Start Times: Hot < 1s | Warm < 25s | Cold < 35s
Power & Battery
-
Input Voltage: 10–30 V DC (with overvoltage protection)
-
Back-up Battery: 170 mAh Li-Ion, 3.7 V (0.63 Wh)
-
Internal Fuse: 3A, 125V
-
Power Consumption:
-
Ultra Deep Sleep: < 2 mA
-
Nominal (No Load): < 28 mA
-
Peak (Full Load): < 2 A Max
-
Interface & Physical Specs
-
Dimensions: 79 x 43 x 12 mm (L x W x H)
-
Weight: 54 g
-
I/O Ports: 1 Digital Input, 1 Digital Output, 1 Analog Input
-
Connectivity: Micro-SIM, 2.0 Micro-USB, 2 Status LEDs
-
Memory: 128MB Internal Flash
-
Protection: IP54 Ingress Rating
Smart Features & Software
-
Sensors: Internal Accelerometer
-
Scenarios: Green Driving, Jamming Detection, Crash Detection, Unplug/Towing Detection, Auto Geofence, Trip Monitoring.
-
Ignition Detection: Digital Input, Accelerometer, External Voltage, or Engine RPM (via OBDII).
-
Configuration: FOTA Web (Remote), Teltonika Configurator (USB/Bluetooth®).
-
Bluetooth® 4.0 + LE: Supports EYE Beacons/Sensors, OBDII dongles, and wireless hands-free updates.
Certification & Approvals
-
FMC920-QJIB0: CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI, SIRIM QAS.
-
FMC920-QKIB0: Anatel, REACH, RoHS.
| SIM Card | Include SIM Card, Don't include SIM Card |
|---|
