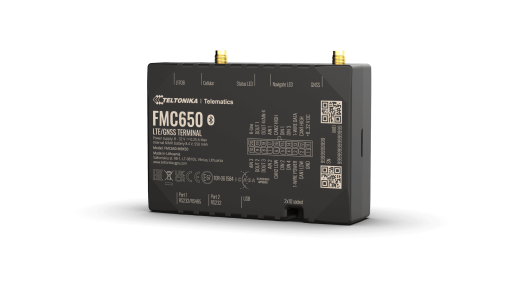

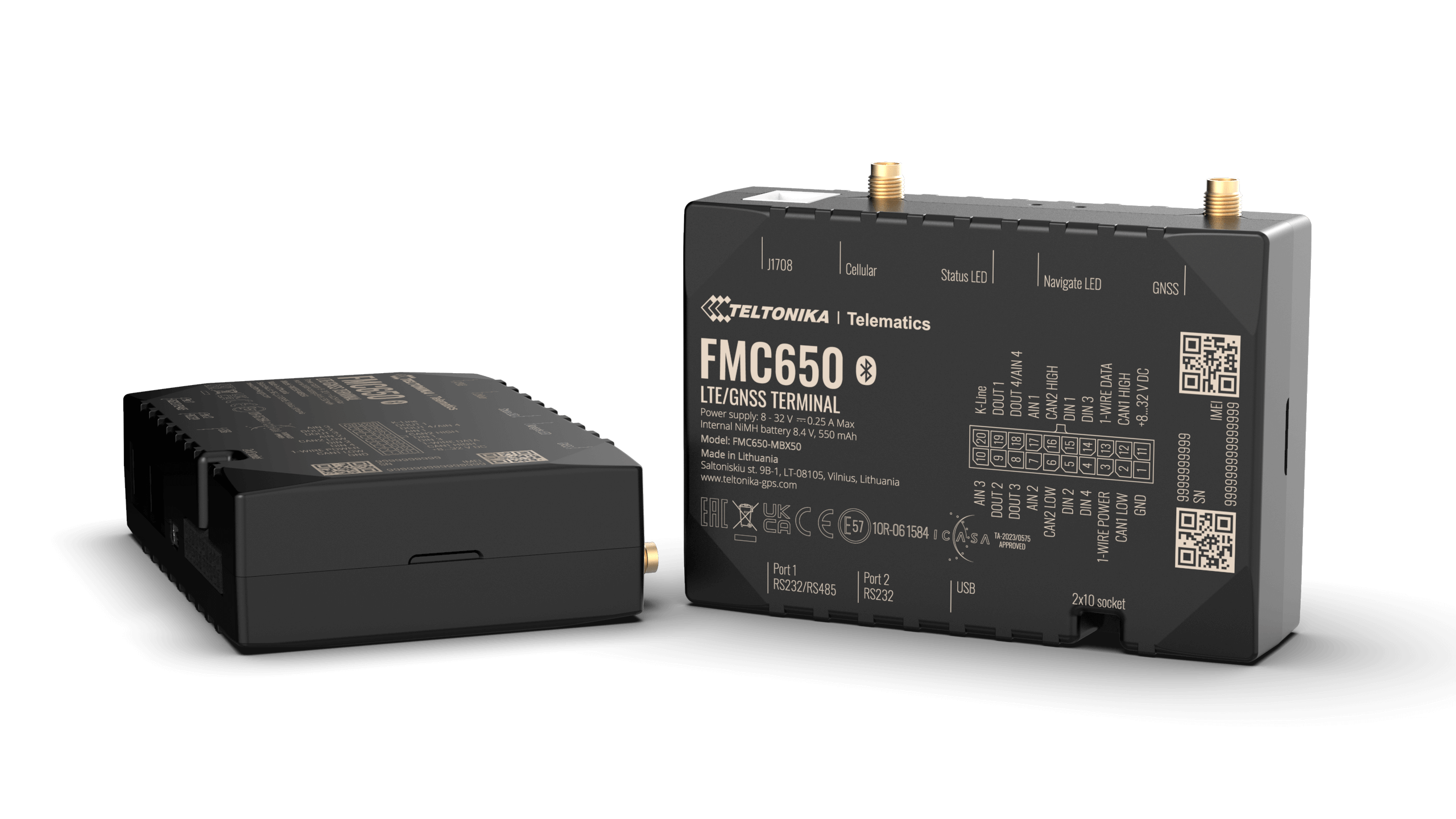

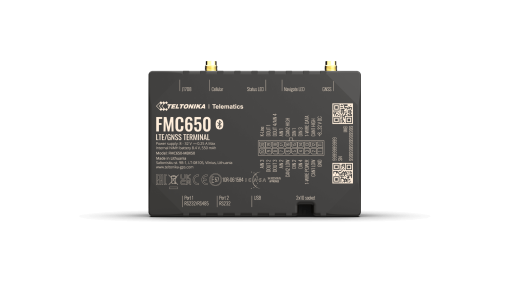

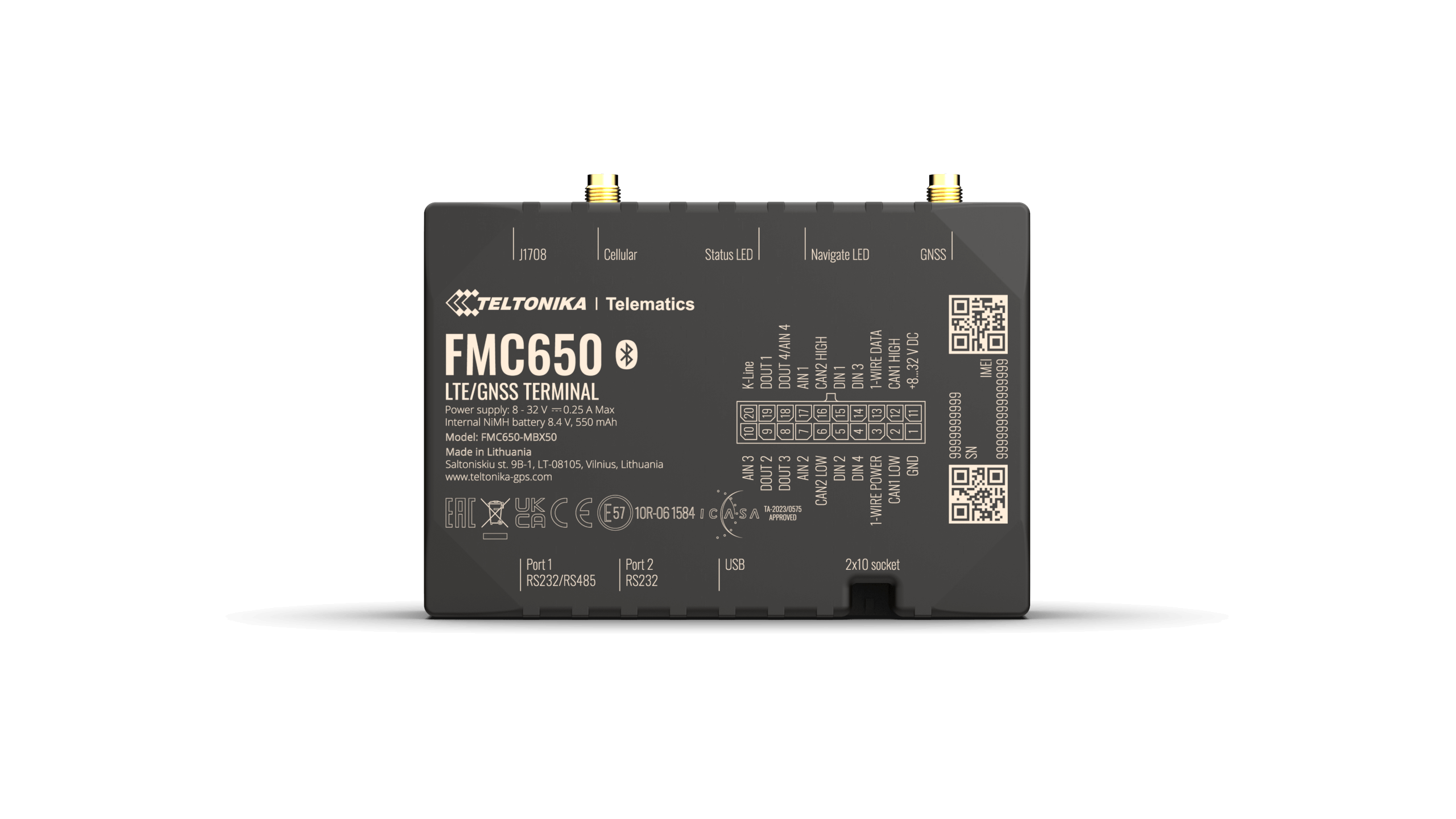

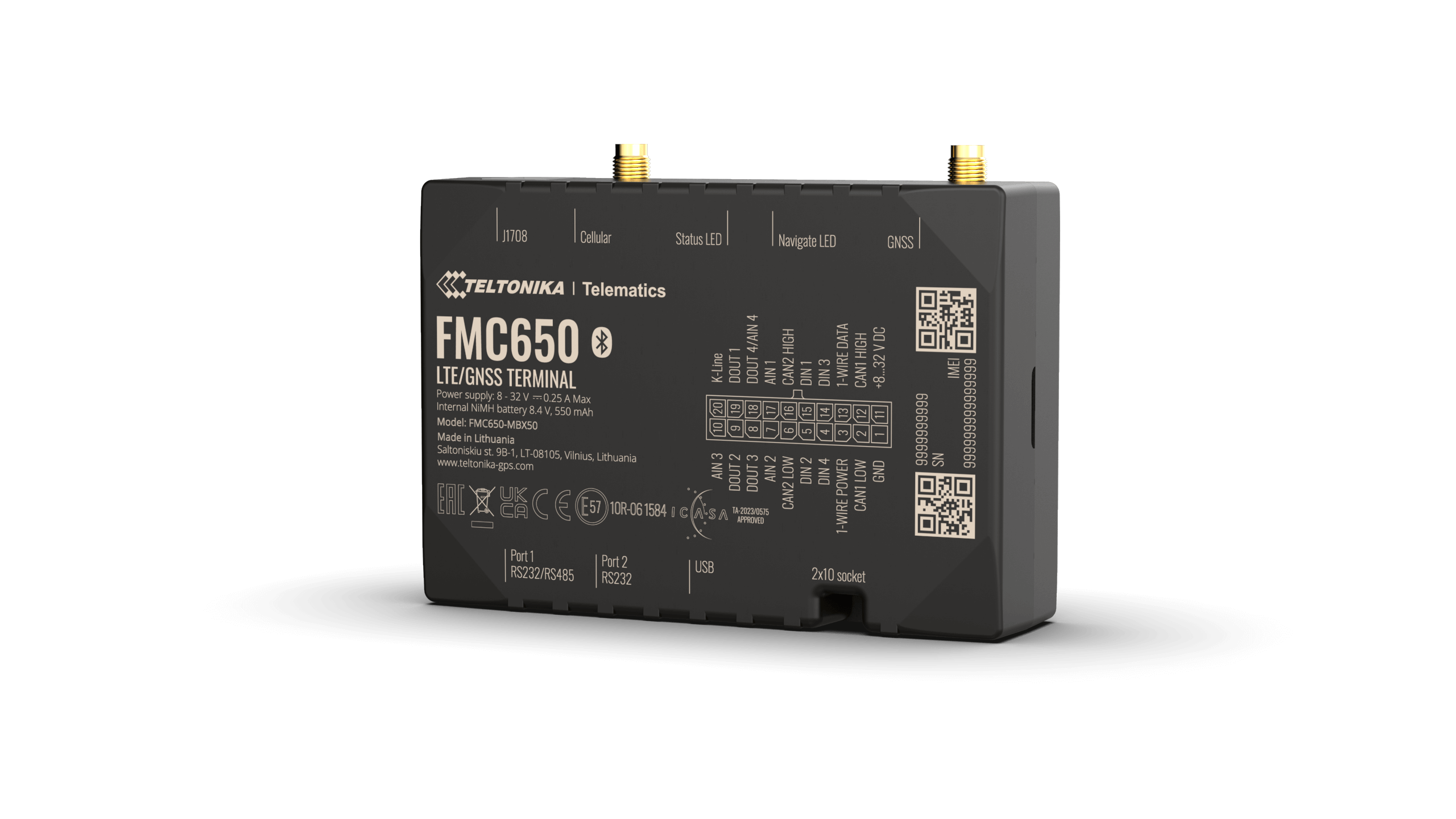

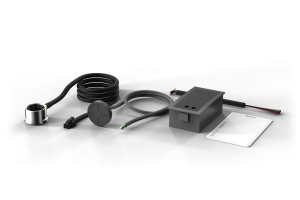

Teltonika FMC650 -4G LTE Cat 1 tracker for advanced applications high capacity backup battery and external antennas
€90.00 – €120.00
Teltonika FMC650 is an a ADVANCED GPS Tracker series device with 4G (LTE Cat 1) network coverage, including 3G (UMTS), 2G (GSM) alternative compatibility.
The device is equipped with GNSS / Bluetooth and LTE modules, internal GNSS and external LTE antennas, and promises excellent coverage wherever you are, due to the advanced 4G – LTE chip it has.
We are global suppliers of Teltonika GPS Trackers.
In your order it is included:
* Free access to our GPS Tracking Software for one year.
*Two year warranty
* Free support & configuration assistance.
Teltonika FMC650 -4G LTE Cat 1 tracker for advanced applications high capacity backup battery and external antennas
The newly introduced Teltonika FMC650 is an ADVANCED GPS Tracker series device with 4G (LTE Cat 1) network coverage, including 3G (UMTS), 2G (GSM) alternative compatibility. It comes equipped with internal GNSS antennas, LTE, adjustable digital/analog/negative and pulse inputs, three DOUT outputs, Bluetooth connectivity and battery backup.
The FMC230 was built on the existing Teltonika FMB platform, so it retains all the features from the FMB204 and builds on them with industry-leading connectivity coverage.
For starters, the Teltonika FMC650 has a negative input that allows you to save valuable integration time while connecting accessories such as vehicle door sensor, alarm buttons, seat belt detection and other similar sensors or accessories.
In addition, the device has a built-in Impulse Input enable function for accurate fuel flow meter data reading. Pulse-based fuel usage monitoring is much more accurate than different types of fuel metering sensors and makes the Teltonika FMC650 a perfect solution for high fuel consumption machinery such as cranes, construction vehicles, mining machinery, agricultural equipment.
Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, buzzer, warning lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility, including alternative 3G (UMTS) and 2G (GSM) compatibility make this one of the most versatile devices ever.
Name
FMC650-MBX50: MeiG SLM320-PE2C
Technology
LTE (CaT1) / 2G (GSM / GPRS)
Module name
Airoha AG3335MB
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1: 75 acquisition/tracking channel
L5: 60 tracking channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Hot start
1 s
Warm start
< 25 s
Cold start
< 32 s
Technology
LTE Cat 1, GSM
2G bands
FMC650-MBX50: B2/B3/B5/B8
4G LTE bands
FMC650-MBX50:
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
Data transfer
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Transmit power
Class 4 for GSM850/900: 31±2dBm
Class 1 for GSM1800/1900: 30±2dBm
Class 3 for LTE-TDD: 23±3dBm
Class 3 for LTE-FDD: 23±3dBm
Bluetooth LE: up to 6.64 dBm
Input voltage range
8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection
Internal Back-up battery
550 mAh Ni-Mh, 8.4 V battery
Internal fuse
3A, 125V
2 W max. Current consumption at 12 V
At 12V < 4 mA (Deep Sleep)
At 12V < 11 mA (Online Deep Sleep)
At 12V < 32 mA (GPS Sleep)
At 12V < 45 mA (nominal with no load)
At 12V < 0.25 A Max. (with full Load / Peak)
2 W max. Current consumption at 24 V
GPRS: average 35 mA
Nominal: average 24 mA (with no load)
GNSS sleep: average 17 mA
Deep Sleep: average 2,9 mA
Online Deep Sleep: average 7 mA
Full Load/Peak: <0.25A Max
Name
Blue NRG232
Specification
5.0 + LE
Supported peripherals
Temperature and Humidity sensor, Universal BLUETOOTH® LE sensors support
Dimensions
104,1 x 76,8 x 31,5 mm (L x W x H)
Weight
197 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Storage temperature (with battery)
-20 °C to +45 °C
Ingress Protection Rating
IP41
Battery storage temperature
-20 °C to +45°C
Digital Inputs
4
Digital Outputs
4
Analog Inputs
4
1-Wire
1
RS232
2
RS485
1
CAN J1939
2
J1708
1
K-line
1
GNSS antenna
External High Gain (L1+L5)
Cellular antenna
External High Gain
USB
2.0 Mini-USB – device can be powered by USB for easier device configuration
LED indication
2 status LED lights
SIM
2x SIM Card (Dual-SIM) or 1x eSIM
Memory
16 MB internal flash memory and external Micro SD card up to 32GB
Switchable CAN terminals
Supported on CAN1 and CAN2 lines
Sensors
Accelerometer
Scenarios
Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection,
Towing detection, Crash detection, Immobilizer, iButton Read Notification
Functionalities

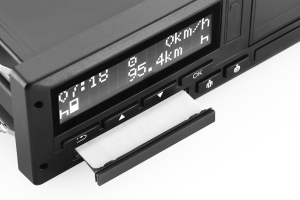

Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals
Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE® sensors support
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection
Digital Input, Accelerometer, External Power Voltage
RS232 Modes
Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes
Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
Regulatory
CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC
| Weight | 0.2 kg |
|---|---|
| SIM Card | Include SIM Card, Don't include SIM Card |
