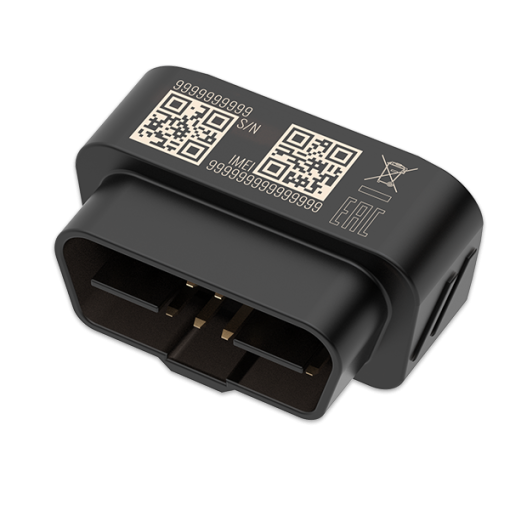

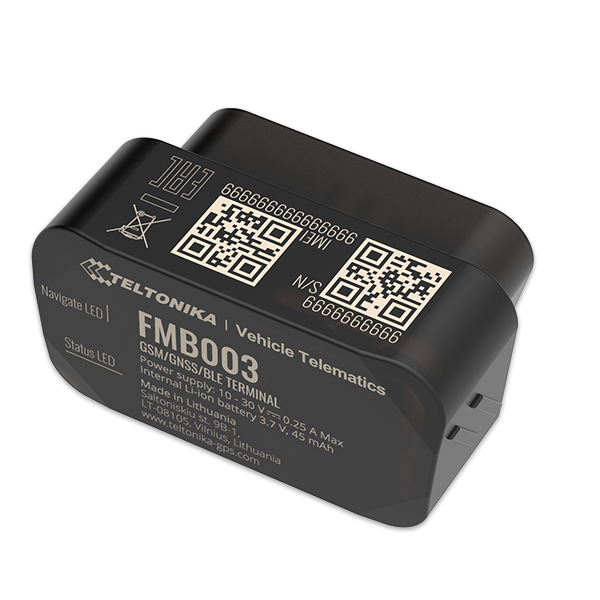

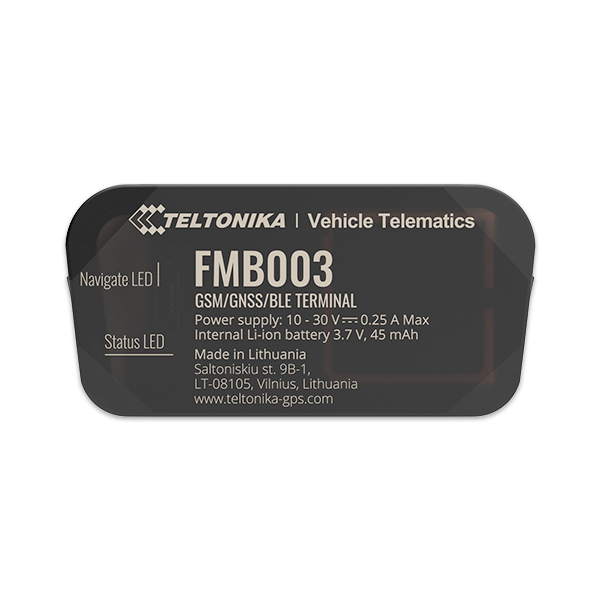

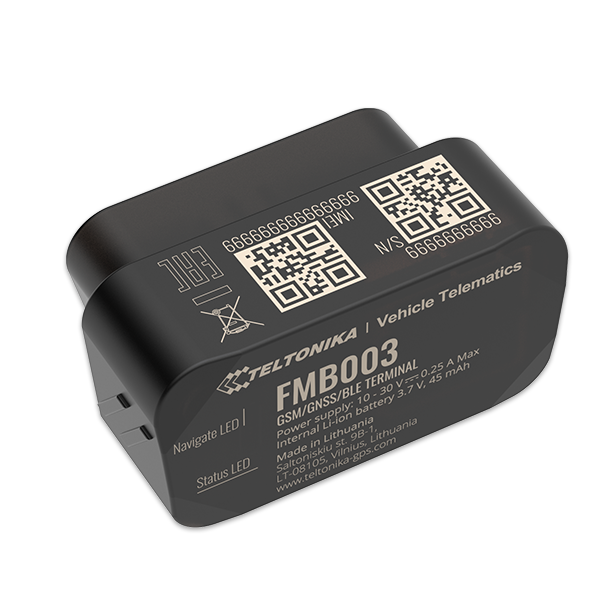

GPS Tracker Teltonika FMB003 OBD – Can bus reading plug and track – super ultra-small OBDII tracker
€54.00
Teltonika FMB003 GPS Tracker is an ultra-small 3G OBDII plug and play device with GNSS, GSM, BLE 4.0 connectivity and CAN bus data reading capability. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.
The main feature of FMB003 is OBDII standard data reading from a vehicle’s on-board computer. Combined with an effortless and low-cost integration, it is an easy and powerful solution. The device supports various Bluetooth Low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth.
Last but not least – our device is only 50% of a size of its predecessor FMB003. Much smaller, yet with an enriched set of features, FMB003 is an obvious choice for your OBD application!
We offer you factory prices in whatever quantity you need.
Ιn this price it is included:
* No minumum order
* mix models per shipping.
* Extra discount -5% discount in all African countries.
* Free tracking for one year
*Two year warranty
* Free support to configouration the devices
Contact with us to offer you a special offer !!
FMB003 is our smallest 2G tracker that fits perfectly into any car. Designed with OBD OEM data reading, which allows to get real odometer & fuel level data.
Ultra-small Plug & Play casing
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.
Reading OBD OEM parameters – Get real odometer & real fuel level data
FMB003 is our smallest 2G tracker that fits perfectly into any car.
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channels
99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Cold start
< 35 s
Warm start
< 25 s
Hot start
< 1 s
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps)
Data support
SMS (text/data)
Input voltage range
12 – 30 V DC with overvoltage protection
Back-up battery
45 mAh Li-Ion battery (0.167 Wh)
Power consumption
At 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Dimensions
52.6 x 29.1 x 26 mm (L x W x H)
Weight
30 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Data
HS CAN, MS CAN, SW CAN, K-line
Data reading
OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 14229 (UDS)
J2819 (VW TP2.0)
Connection
OBDII Socket
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetoot® wireless technology)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
OBDII, OEM fuel level
Ignition detection
Accelerometer, External Power Voltage, Engine RPM
Regulatory
CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, SIRIM QAS, Anatel, SDPPI POSTEL
