Teltonika FMC880 4G LTE GPS Tracker – Waterproof IP65 Battery-Mounted Terminal

Maximize your vehicle’s performance with the Teltonika FMC880, a state-of-the-art 4G LTE Cat 1 tracker designed for easy, “plug-and-play” installation directly onto the vehicle battery. This water-resistant (IP65) device is the perfect solution for light vehicles, motorcycles, and delivery fleets, offering high-accuracy GNSS tracking and advanced crash detection. With its integrated accelerometer and Bluetooth® connectivity, the FMC880 provides real-time data on driver behavior and vehicle health, making it a future-proof choice for modern fleet management.

⚡ FMC880: Power Meets Simplicity

• 🔋 Fast 5-Minute Install – Designed to be mounted directly on the battery terminals with no professional wiring required.

• 📶 Global 4G Connectivity – Reliable LTE Cat 1 network coverage with 2G fallback for seamless tracking across borders.

• 🌊 IP65 Rated Housing – Fully protected against dust and low-pressure water jets, ideal for under-the-hood or motorcycle use.

• 🛡️ Advanced Safety – Built-in crash detection and eco-driving scenarios help reduce insurance costs and improve safety.

• 📱 Bluetooth LE – Connect wireless sensors or OBDII dongles for expanded vehicle diagnostics without extra cables.

It has a powerful antenna and you can place it under the hood of the car and can be connected directly to the vehicle battery.

IMPROVED GNSS TRACKING ACCURACY

• Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix.

FAST INSTALLATION

• Virtually anyone can mount the device in 5 minutes or less directly on a car battery.

ROBUST CASING

• IP65-rated casing is designed to withstand poor weather conditions;

EXTENDED PRODUCT USAGE SCENARIOS

• Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement;

:

🛠️ Step-by-Step Installation Guide: Teltonika FMC880

The FMC880 is a “Plug & Play” professional tracker. Follow these simple steps to get your vehicle online:

Step 1: Preparation

• Locate the Battery: Open your vehicle’s hood (or seat for motorcycles) to access the battery terminals.

• Clean the Surface: Wipe the top of the battery or a nearby flat surface with a dry cloth to ensure the adhesive tape sticks firmly.

Step 2: Connect the Wires

• 🔴 Red Wire (+): Connect the fork connector of the red wire to the Positive (+) terminal of the battery. Tighten the bolt to secure it.

• ⚫ Black Wire (-): Connect the fork connector of the black wire to the Negative (-) terminal of the battery. Tighten the bolt securely.

• Note: The device will power on immediately once connected.

Step 3: Secure the Device

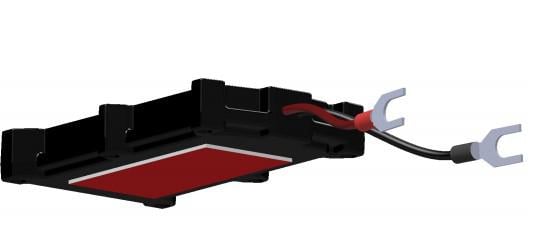

• Mounting: Use the high-strength double-sided adhesive tape (included) or cable ties to fix the FMC880 firmly onto the battery or a flat plastic surface nearby.

• Orientation: For best results, ensure the Teltonika logo side is facing up (towards the sky) to provide the internal GNSS antenna with the best view.

Step 4: Verify Connection

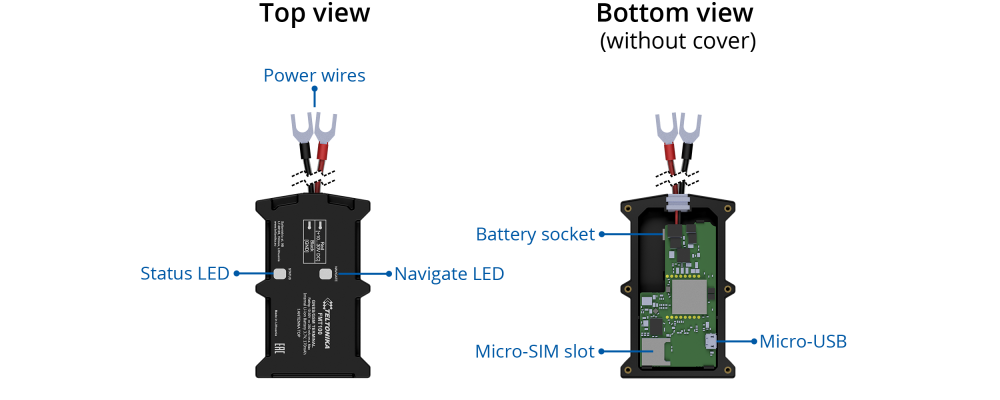

• Check the LEDs: Look at the two status lights on the side of the device.

  • Status LED: Should blink regularly once the device is configured.

  • Navigation LED: Will blink when it has a solid GPS satellite lock.

Step 5: Close Up and Track!

• Ensure the wires are tucked away safely so they don’t interfere with the hood or other moving parts. Close the hood, and you are ready to track your vehicle via our FREE GPS Software!

💡 Pro Installation Tips:

• Discreet Placement: Because it is so slim, you can often hide it slightly under a plastic trim near the battery, provided there is no metal directly above it.

• Motorcycles: The IP65 water-resistant rating means you don’t have to worry about rain or road spray during your ride.

• Configuration: Remember that we offer Free Support & Configuration Assistance, so we can help you set up your tracking intervals before we ship the device!

Properties

• FMC880-QJAB0: Quectel EG915U-EU with AG3335;
• FMC880-QKAB0: Quectel EG915U-LA with AG3335;
• LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH;

Receiver

• L1: 75 channel;
• L5: 60 channel;
• Tracking sensitivity -165 dBM;
• Position Accuracy < 1 m CEP;
• Velocity Accuracy < 0.1 m/s (within +/- 15% error);
• Hot start < 1 s;
• Warm start < 24 s;
• Cold start < 35 s;
• 2G bands;
• GSM: B2/B3/B5/B8;
• 4G LTE Cat M1 bands;
• FMC880-QJAB0:
• LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28;
• FMC880-QKAB0:
• LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66;

Data transfer

• LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL);
• GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL);

Transmit power

• Class 5 for GSM850/900: 30±5dBM;
• Class 3 for GSM1800/1900: 29±5dBM;
• Class 3 for LTE-FDD: 26±5dBM;
• Bluetooth: 5.54±2dBM;
• Bluetooth LE: -4.26±2dBM;
• Data support
• SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT);

Power

• 10–30 V DC with over voltage and reverse polarity protection;
• Internal Back-up battery
• 170 mAh Li-Ion battery, 3.7 V (0.63 Wh);
• Internal fuse 3A, 125V;
• Bluetooth;
• 4.0 + LE;
• Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support;
• Dimensions 92.5*57.6*14 mm;
• Weight 63 g.;
• Interface
• GNSS antenna;
• Internal High Gain;
• Cellular antenna;
• Internal High Gain;

USB

• 2.0 USB Micro B;
• LED indication;
• 2 status LED lights;
• Micro-SIM;
• Memory;
• 128MB internal flash memory;
• Operating temperature (without battery) -40 °C to +85 °C;
• Storage temperature (without battery) -40 °C to +85 °C;
• Operating temperature (with battery) 0 °C to +40 °C;
• Storage temperature (with battery) -20 °C to +45 °C;
• Operating humidity 5% to 95% non-condensing;
• IP65;
• Battery charge temperature 0 °C to +45 °C;
• Battery discharge temperature -20 °C to +60 °C;
• -20 °C to +45 °C for 1 month;
• -20 °C to +35 °C for 6 months;

Scenarios

• Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip;

Sleep modes

• GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep;
• Configuration and firmware update;
• FOTA Web, Teltonika Configurator (USB, Bluetooth);

SMS

• Configuration, Events, Debug;
• GPRS commands;
• Configuration, Debug;
• Time Synchronization;
• GNSS, NITZ, NTP;
• Ignition detection;
• Accelerometer, External Power Voltage;

Set of equipment

• GPS tracker Teltonika 4G FMC880;
• Server/SIM card for an additional fee;
• Directions for use in English language;

Warranty: 24 months
