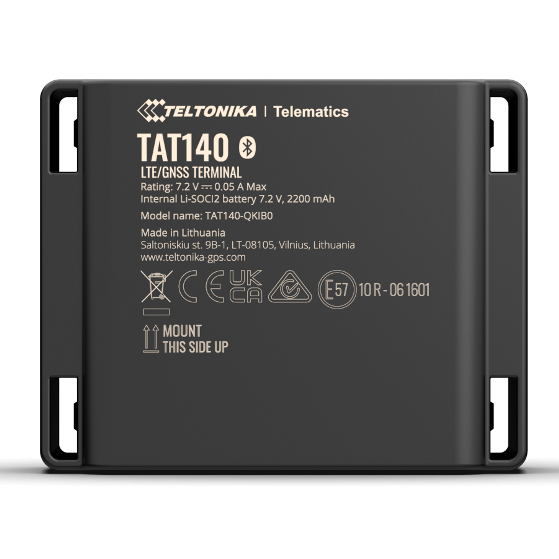

Teltonika TAT140 – 4G Asset tracking GPS Tracker- large battery with movement – tamper alert and Magnetic holder.

Name: Teltonika TAT140 - 4G Asset tracking GPS Tracker- large battery with movement – tamper alert and Magnetic holder.
SKU: 21913
Availability: InStock

€87.00

TAT140 is a 4G LTE Cat 1 tracker with up to 3 years battery life, worldwide coverage, extended battery life. Magnetic holder. Tracker for goods tracking, …
* Extra discount -5% discount in all African countries.
* Free tracking for one year
*Two year warranty
* Free support to configouration the devices

Add to wishlist

Categories: Asset Trackers, GPS Trackers 4G, Teltonika Gps Trackers 4G, Teltonika mobile tracking, View All Gps Trackers Tags: asset tracking, handheld gps tracker, portable GPS Tracker, preconfigured gps tracker, teltonika, Teltonika asset tracking, teltonika gps tracker, Teltonika tat100

Description
Reviews (0)

TAT140 is a 4G LTE Cat 1 tracker with up to 3 years battery life, worldwide coverage, extended battery life. Magnetic holder. Tracker for goods tracking,

4G LTE Cat 1 asset tracker for worldwide coverage

Backup tracking the easy way

Quick set-up with Teltonika vehicle tracking devices to use TAT140 as a backup tracker for your transport’s maximum safety

EXTENDABLE BATTERY LIFE

Various usage scenarios to increase battery lifetime depending on your needs

EFFORTLESS INSTALLATION, RELIABLE OPERATION

Fast device set-up without any wires and protection in extreme weather conditions with the IP68-rated casing

PRODUCT video

PRODUCT SPECIFICATIONS

Module

Name

TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500

TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology

LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH ® LE

GNSS

L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*

_{* Optional modes available with custom firmware applications, for more information contact your sales manager.}

Receiver

33 tracking channels

99 acquisition channels

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Cellular

Technology

LTE Cat 1, GSM

2G bands

TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8

TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8

4G LTE bands

TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28

TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Data transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL);

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power

Class 4 for GSM850/900: 33±2dBM

Class 1 for GSM1800/1900: 30±2dBM

Class 3 for LTE-FDD: 23±2dBM

Data support

SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)

_{** Optional protocols available with custom firmware applications, for more information contact your sales manager.}

Power

Internal battery

Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh

Battery life

Up to 5 years (when used as a backup tracker only via Bluetooth®)*

Up to 4 years (1 LBS – cell towers report per day)*

Up to 3 years (1 GNSS report per day)*

*Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation, and orientation of the device, network coverage, additional functionalities (like Bluetooth® scanning enabled) and more.

Bluetooth® Technology

Specification

4.2 + LE

Supported peripherals

EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support

Physical specification

Dimensions

78 x 63 x 28 mm (L x W x H)

Weight

115g (with 2 cells battery)

Operating environment

Operating temperature (with battery)

-35 °C to +75 °C

Storage temperature (with battery)

-40 °C to +85 °C (Recommended max. 30°C)

Operating temperature (without battery)

-20 °C to +60 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP68

Battery discharge temperature

-60 °C to +85 °C

Battery storage temperature

Recommended max. 30°C

Interface

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

1 status LED light

SIM

Micro-SIM

Memory

128MB internal flash memory

Features

Sensors

Accelerometer

Scenarios

Accelerometer wake up, GNSS, Bluetooth ® LE sensors support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost Bluetooth® LE sensors

Sleep modes

Single custom sleep mode

Configuration and firmware update

FOTA WEB, Teltonika Configurator (USB)

SMS

Configuration, Events, Debug

GPRS commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Certification & approvals

Regulatory
