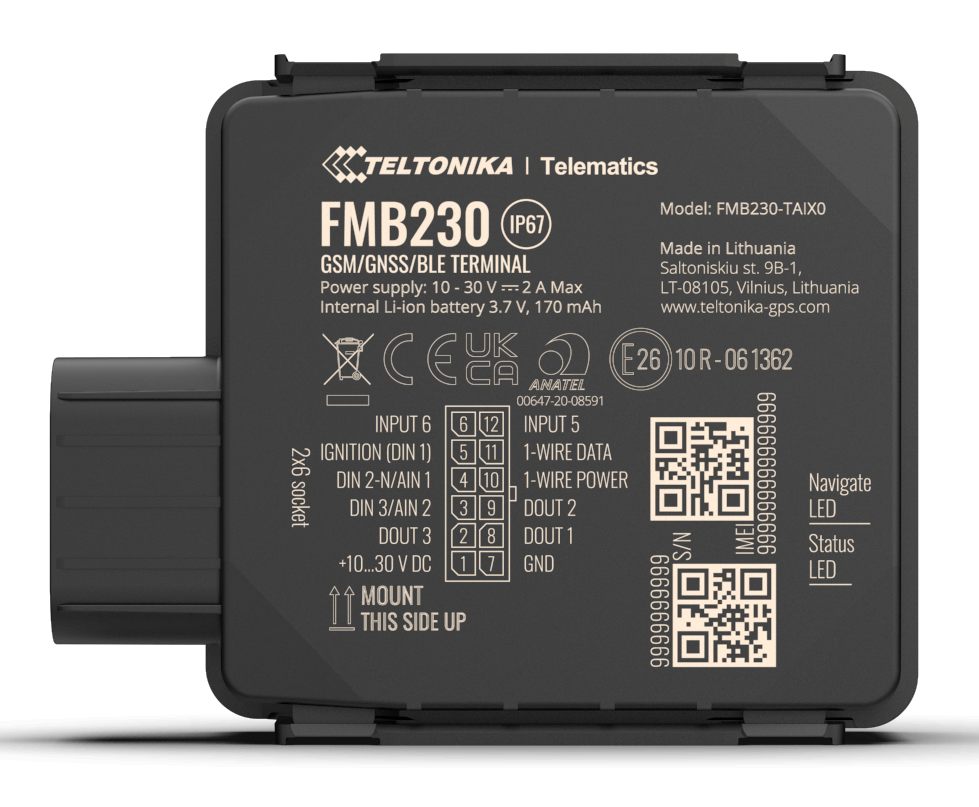

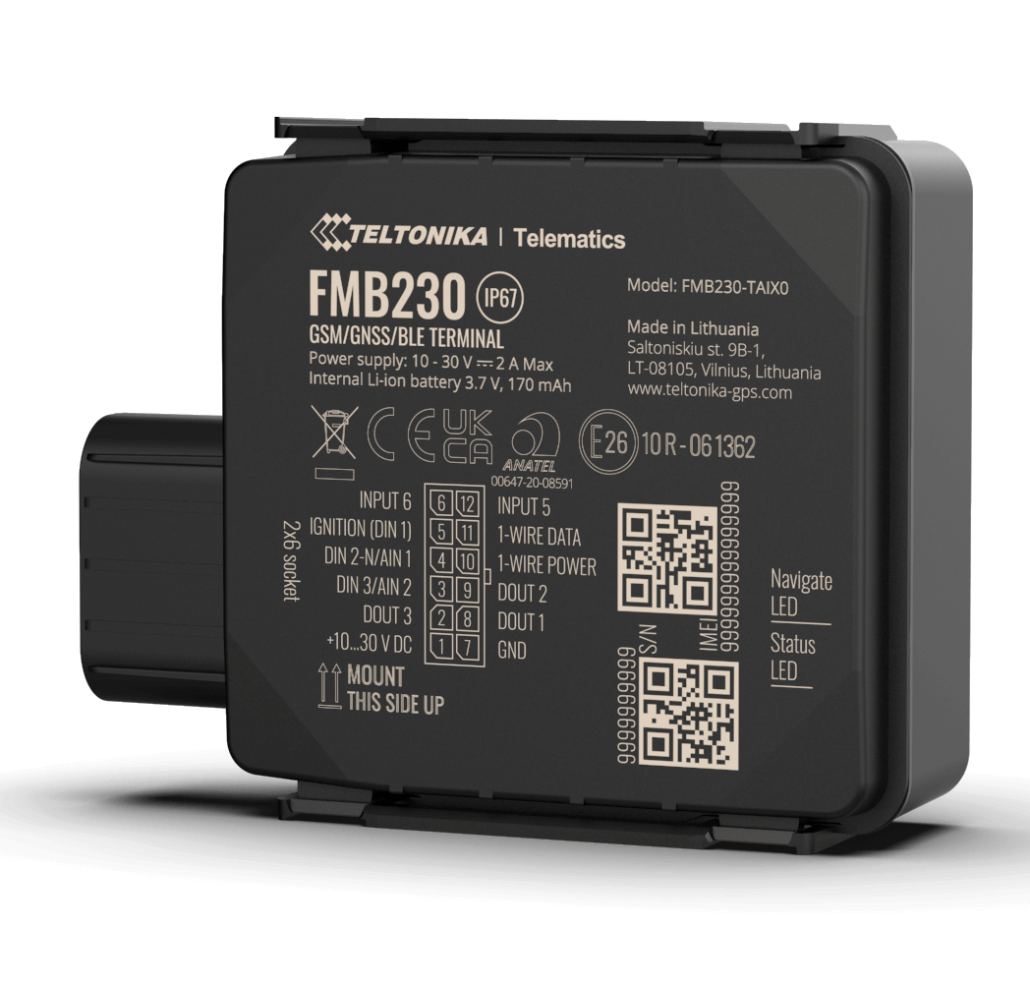

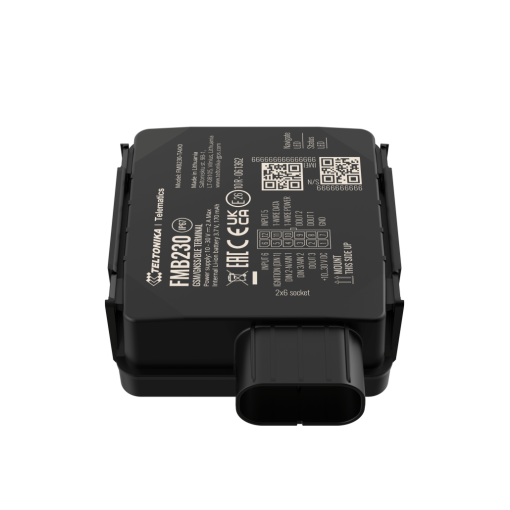

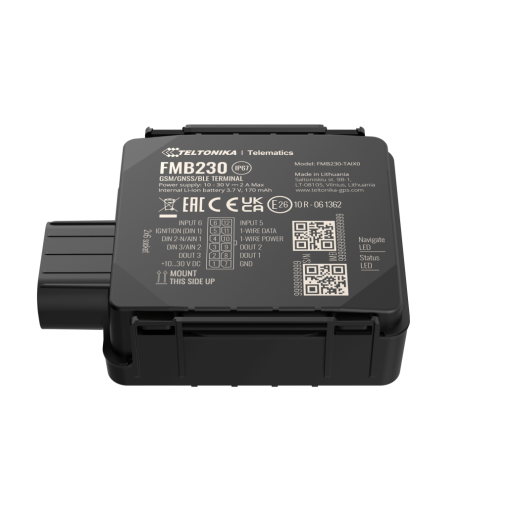

Teltonika GPS Tracker FMB230
European Waterproof GPS Tracker Teltonika FMB230
TELTONIKA GPS Tracker FMB230 Waterproof device for boats, engines & cars. When the vehicle is not moving to save battery, it goes into sleep mode and the movement is activated again with a vibration
Teltonika FMB 230 is a durable and waterproof device (IP67) with internal GPS & GSM antennas, suitable for working outdoors and in harsh conditions such as boats, motorcycles, buggy and various other vehicles.
IP67 housing – Internal GSM antenna & GPS Real-time monitoring – Possibility to connect external sensors Intelligent algorithm for data acquisition (time, distance, angle and event-based) Data transmission via GPRS (TCP/IP and UDP/IP protocols) Network operation roaming – list of recommended GSM providers
The device will also send you an sms to your mobile phone if someone tries to disconnect it from the battery.
Complete satellite & mobile tracking solutions GPS tracker
Fleet management Integrated tracking solutions with European devices
GPS Tracker for boats and boats
FMB230 – IP67 and Li-Po battery
Teltonika FMB230 is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FMB230 with LiPo battery can work up to 6 days in power saving mode. FMB204 is perfectly suitable for agriculture, delivery, refrigerated transport, trailer tracking, security & emergency services and even more. 6-30V power supply makes FMB204 suitable for motorbikes and water transport.
Waterproof GPS/GSM vehicle tracker
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
33 channels
Tracking sensitivity
-165dBm
Position Accuracy
< 2.5 m CEP
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
Input voltage range
10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption
At 12V < 2.5 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 5.5 mA (Online Deep Sleep)
At 12V < 18.5 mA (GPS Sleep)
At 12V < 34 mA (nominal with no load)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

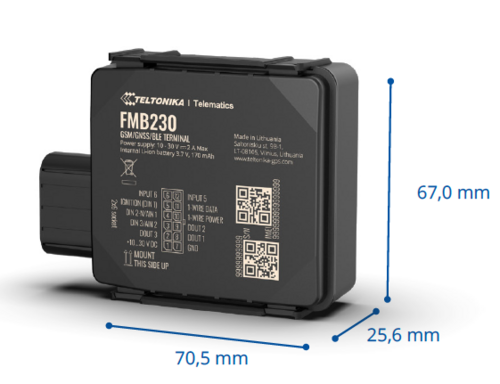

Dimensions
70.5 x 67.0 x 25.6 mm (L x W x H)
85.0 x 67.0 x 25.6 mm (L x W x H) (length with connector socket)
Weight
75 g
Digital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impulse Inputs
2 (Digital Input 1, Digital Input 2)
Digital Outputs
3
Analog Inputs
2
CAN Adapter Inputs
1
1-Wire
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal GSM High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM + eSIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
