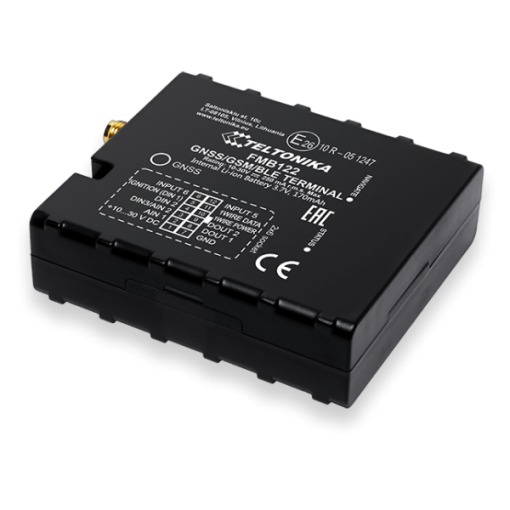

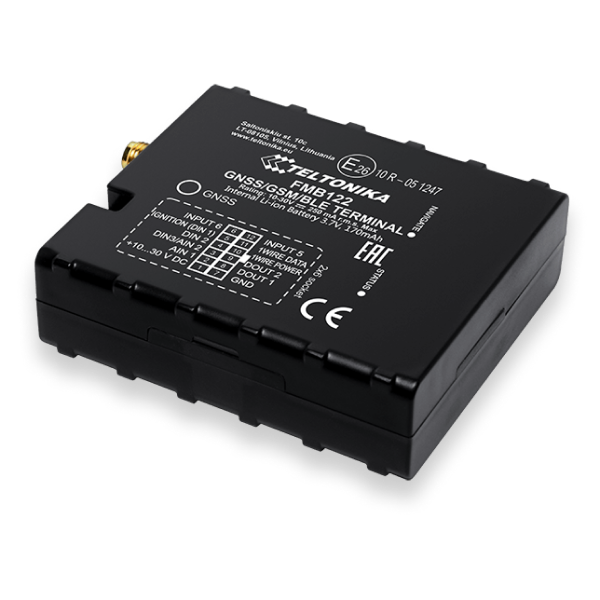

GPS Tracker with external antennas TELTONIKA FMB122



Teltonika FMB122 is a small and professional tracker with internal high gain GSM and external GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to the server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB122 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

• ΤECHNOLOGY

• GNSS i
• GPRS i
• SMS i
• Bluetooth i

• HARDWARE

• Internal GSM antenna i
• External GNSS antenna i
• DIN – digital input – 3 i
• AIN – analog input – 2 i
• DOUT – 2 i
• 1-Wire® – 1 i
• Accelerometer i
• Battery – 170mAh Li-ion 3,7V i
• IP41 i
• Micro SD i
• 10 – 30V i
• Overvoltage protection i
• 2x SIM Card (Dual-SIM) i
• USB 2.0 Interface i

• FIRMWARE

• NITZ time synch. i
• Configuration over Bluetooth i
• LV-CAN support i
• ALL-CAN support i
• Ignition detection i
• Geo-fence i
• Sleep/Deep sleep i
• Overspeeding detection i
• FOTA i
• GPRS commands i
• RFID 1-Wire® i
• iButton 1-Wire® i
• Temp. 1-Wire® i
• Immobilizer i
• Eco driving i
• Green driving i
• Fuel monitoring LLS i
• Jamming detection i
• NTP time synch. i
• SMS event i
• Idling detection i
• Crash detection i
• Odometer i
• Trip detection i
• Towing detection i
• Integrated scenarios i
• Remote configuration over SMS i
• Offline tracking i
• Auto Geofencing i
• Voice call i

GSM:

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS Multi-Slot Class 12 (up to 240 kbps)
• GPRS Mobile Station Class B
• SMS (text/data)
• Dual SIM

Bluetooth:

• Bluetooth specification V3.0
• Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
  • Voice calls over Bluetooth
  • Configuration via Bluetooth
  • OBDII Bluetooth dongle

 GNSS:

• Tracking: 33/ 99 acquisition channels
• -165 dBM sensitivity
• Hot start <1s
• Warm Start < 25s
• Cold start < 35s
• NMEA-183 protocol
• GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Accuracy < 3m

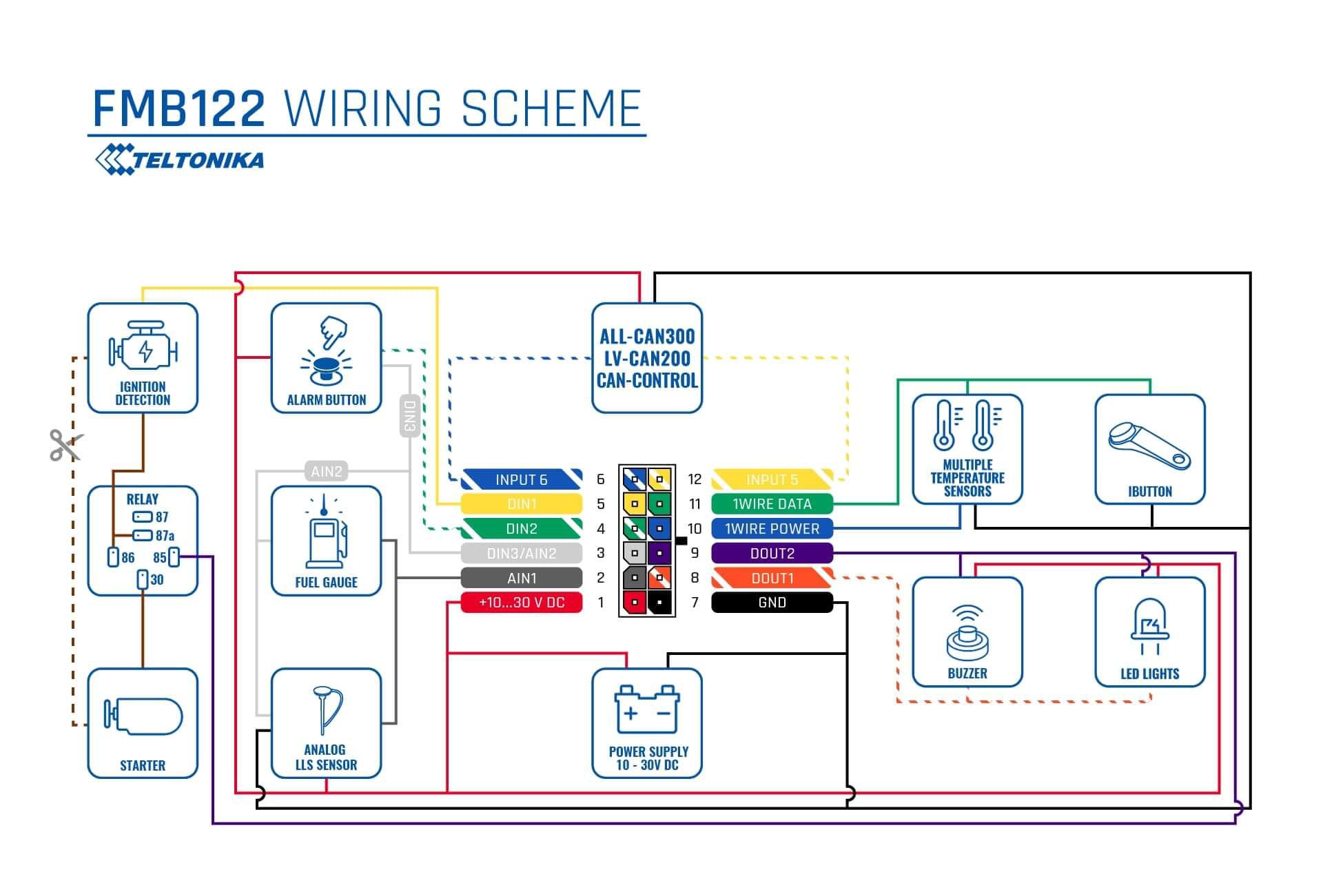

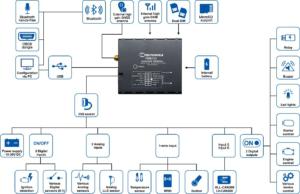

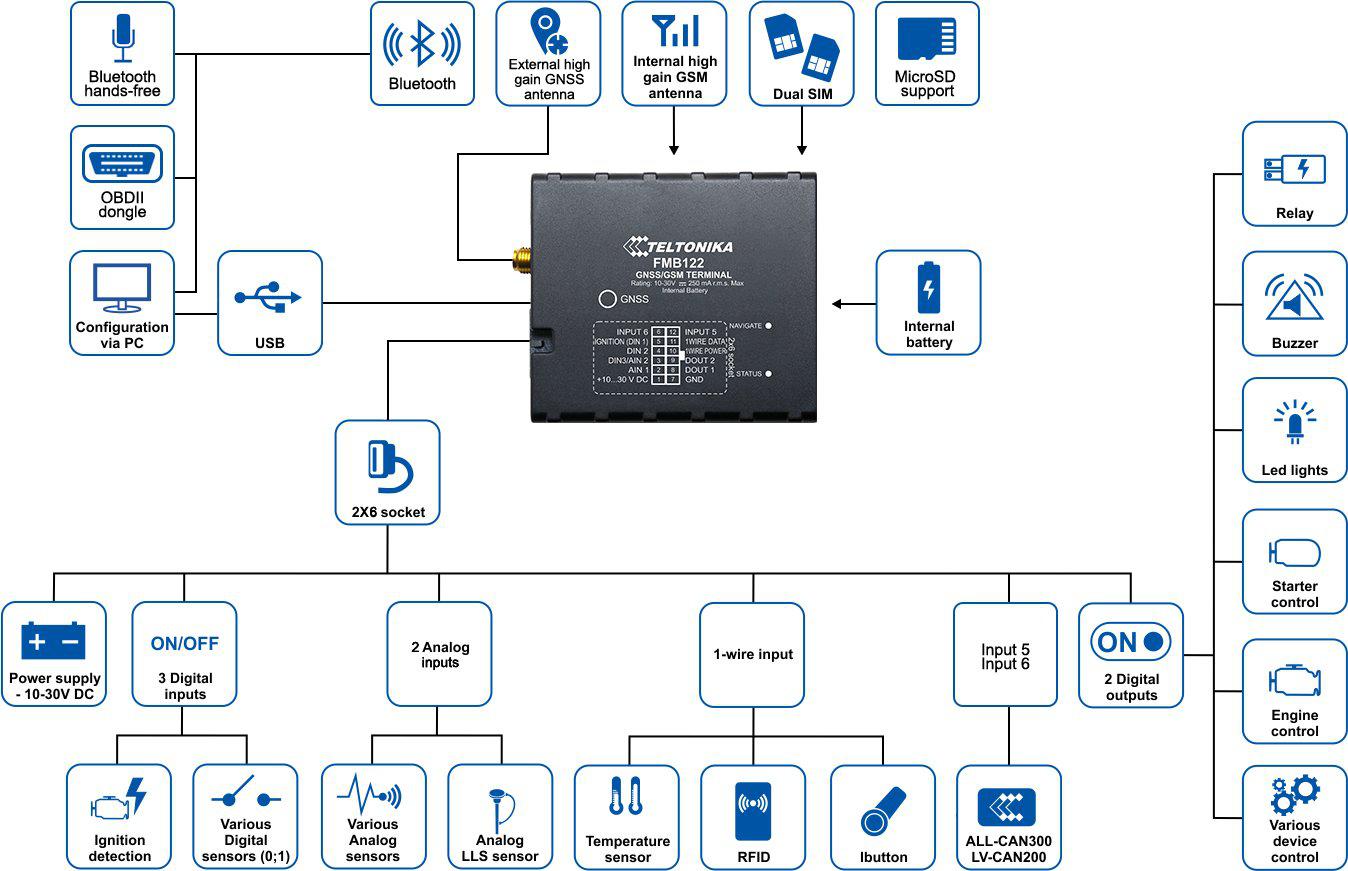

INTERFACE:

• 2 Digital Inputs (1 reserved for Ignition Status Monitoring)
• 1 Analog Input (10V or 30V range)
• 1 configurable input DIN3 or AIN2
• 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
• 1-Wire^® (iButton^® , RFID, temperature sensors)
• MicroSD
• Built in accelerometer
• Power supply (+10…+30) V DC
• Internal high gain GSM antenna
• Internal high gain GNSS antenna
• Dimensions: L(65mm) x W(56,6mm) x H(18,9mm)
• 2 Status LEDs
• Micro USB Port
• Integrated LiPo back-up battery
