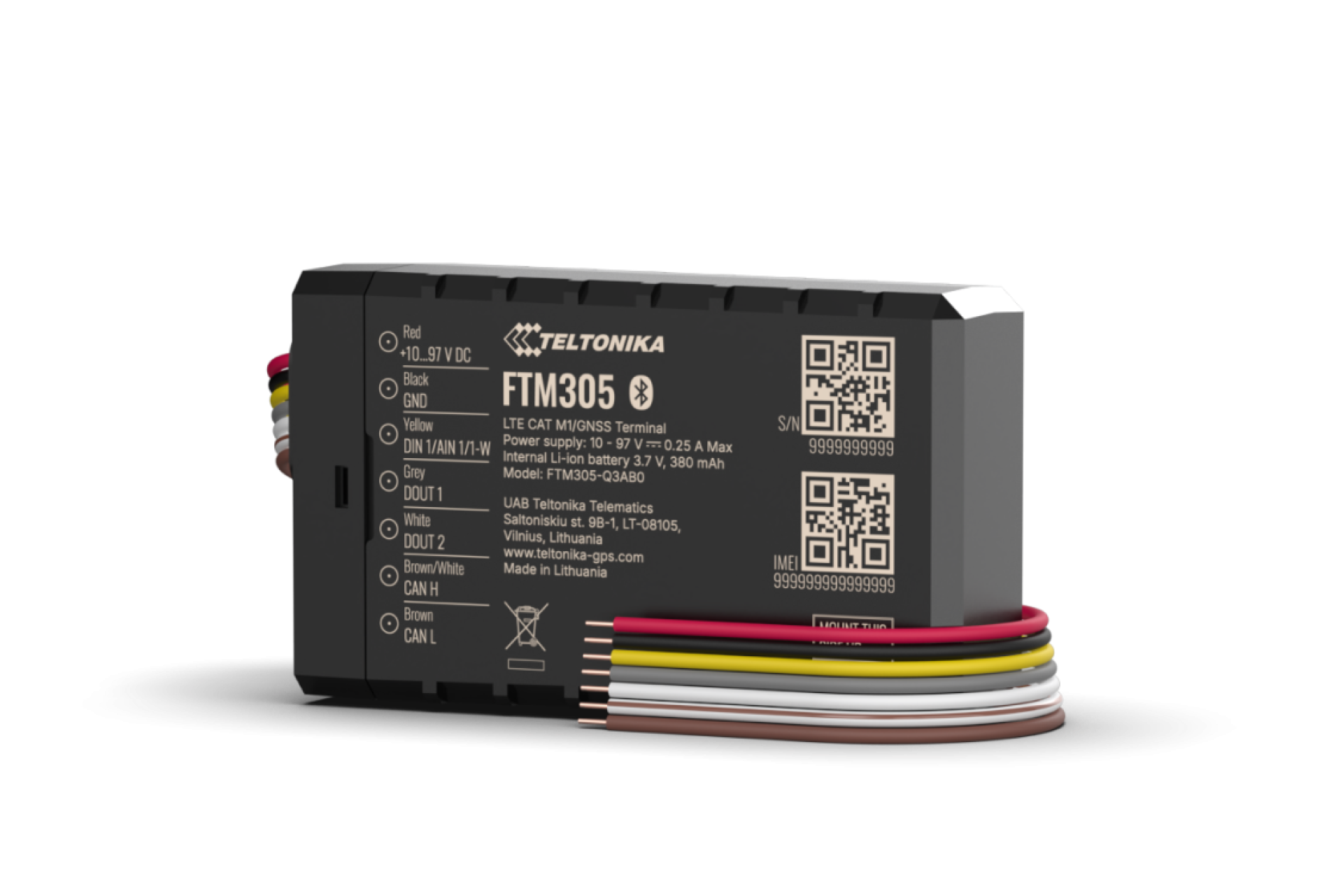

FTM305 M1 4G Compact 4G LTE Cat M1 e-mobility tracker with CAN data reading and robust IP67-rated casing

Name: FTM305 M1 4G Compact 4G LTE Cat M1 e-mobility tracker with CAN data reading and robust IP67-rated casing
SKU: 23638
Availability: InStock

Price range: €78.00 through €108.00

CAN DATA FOR E-MOBILITY EFFICIENCY

Make sustainable future a reality with 4G LTE Cat M1 e-mobility device FTM305 with 10-97 V support, enhanced GNSS accuracy, and robust IP67-rated casing.

* No minimum order
* mix models per shipping.
* Extra discount -5% discount in all African countries.

* Special month offer. By choosing to purchase with the SIM card, we will offer you Free access to our GPS Tracking Software for one year.

*Two year warranty
* Free support & configuration assistance.
* The SIM card has data for 5 years tracking

SIM Card

Clear

Add to wishlist

SKU: N/A Categories: e-Mobility Tracking, GPS Trackers 4G, Teltonika Gps Trackers 4G, View All Gps Trackers Tags: 4G GPS Tracker, advanced GPS Tracker, FMC650, motorcycle gps tracker, teltonika, Teltonika FMC650, teltonika internal antennas, waterproof gps tracker

CHOOSE THE MODEL FOR YOU

FTC305 M1 4G LTE Cat 1 tracker available in IP67-rated casing or without casing

FTM305 M1 4G LTE Cat M1 tracker available in IP67-rated casing

CHOOSE THE MODEL FOR YOU

FTC305 M1 4G LTE Cat 1 tracker available in IP67-rated casing or without casing

FTM305 M1 4G LTE Cat M1 tracker available in IP67-rated casing

CAN DATA FOR E-MOBILITY EFFICIENCY

Compact 4G LTE Cat 1 e-mobility tracker with CAN data reading and flexible installation options

TAILORED FOR FACTORY INSTALLATION Unique no-casing version of FTC305 with external antenna and larger battery capacity for mounting inside e-bike and e-bicycle frames

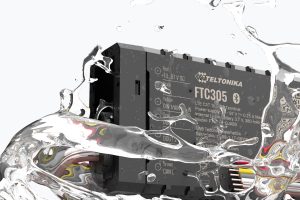

PROTECTION AGAINST DUST AND WATER Robust yet small IP67-rated casing provides trusted protection against dust and resistance to water

Get crucial CAN parameters and create a custom parameter database to enhance the operational efficiency of your e-mobility fleet

Teltonika FTC305 is a tracker for CAN data acquisition in electric vehicle fleets. The device operates on a 10-97V power supply, suitable for e-bikes,

PERFECT FOR HIGH-VOLTAGE TRANSPORT AND MACHINERY Solid 10-97 V power supply allows device integration in e-bikes, forklifts, shuttle cars, utility machinery, and other electric equipment

TAILORED FOR FACTORY INSTALLATION

Unique no-casing version of FTC305 with external antenna and larger battery capacity for mounting inside e-bike and e-bicycle frames

READY FOR CHANGING URBAN MOBILITY

Technology

LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU

Receiver

L1: 75 channel

Tracking sensitivity

-165 dBM

Position Accuracy

< 1.8 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cellular

Technology

LTE CAT 1/GSM

2G bands

GSM: B2/B3/B5/B8

4G LTE bands

FTC305-QJAB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28FTC305-QJXB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28FTC305-QKAB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66FTC305-QKXB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66

Data transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power

Class 5 for GSM850/900: 30±5dBMClass 3 for GSM1800/1900: 29±5dBMClass 3 for LTE-FDD: 26±5dBM

Data support

SMS (TEXT, PDU), Network protocols (TCP, UDP)

Power

Input voltage range

10 – 97 V DC

Internal Back-up battery

Casing version: 380 mAh Li-ion battery 3.7 V (1.41 Wh)No casing version: 1200 mAh Li-ion battery 3.7 V (4.44 Wh) (External)

Internal fuse

3 A

Power consumption

At 12V < 40 mA (Nominal with no load)At 12V < 0.25 A Max (with full Load/Peak)

Bluetooth® Technology

Specification

5.3 + LE*_{available in future firmware releases}

Physical specification

Dimensions

Casing version: 69 x 41 x 20.9 mm (L x W x H)No casing version: 62 x 39.6 x 11.5 mm (L x W x H)

Weight

Casing version: 76.8 gNo casing version (with accessories): 126.1 g

Operating environment

Operating temperature

-30 °C to +85 °C

Storage temperature

-30 °C to +85 °C

Operating humidity

65 ± 20% non-condensing

Ingress Protection Rating

Casing version: IP67No casing version: N/A

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

Casing version: -10 °C to +25 °C for 3 or more monthsNo casing version: -20 °C to +45 °C for 3 or more months

Interface

Digital Inputs

Digital Outputs

Analog Inputs

1*_{available in future firmware releases}

1-Wire

1*_{available in future firmware releases}

CAN

GNSS antenna

Casing version: Internal High GainNo casing version: External (SMA female connector)

Cellular antenna

Casing version: Internal High GainNo casing version: External (RP SMA female connector)

USB

2.0 USB Type-C

LED indication

2 status LED lights

SIM

Nano-SIM

Memory

128MB internal flash memory

Data codec

Codec support

Codec 8 Extended

Features

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands

Sleep modes

Online sleep, Deep sleep, Power off sleep*_{available in future firmware releases}

Configuration and firmware update

FOTA WEB, Telematics Configuration Tool (TCT)

Time Synchronization

GNSS, NITZ, NTP

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage

tage

Weight	0.2 kg
SIM Card	Include SIM Card, Don't include SIM Card
