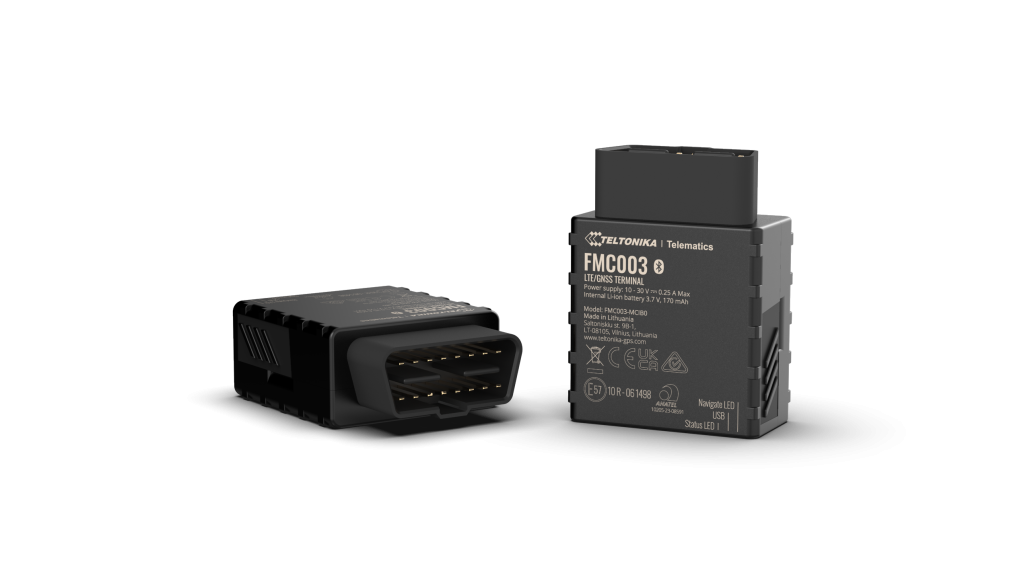

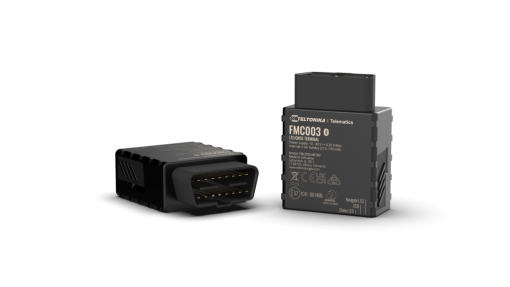

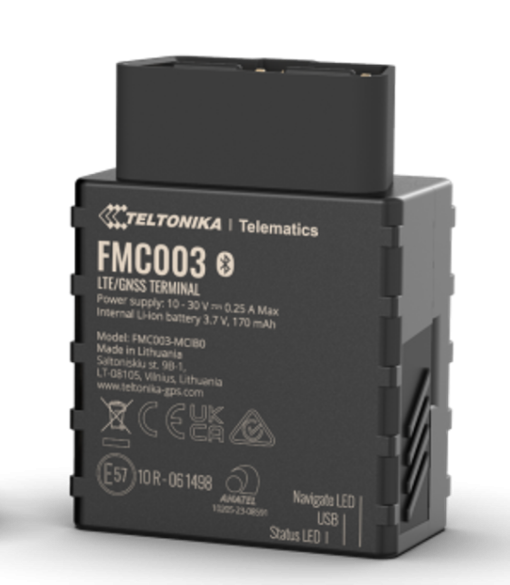

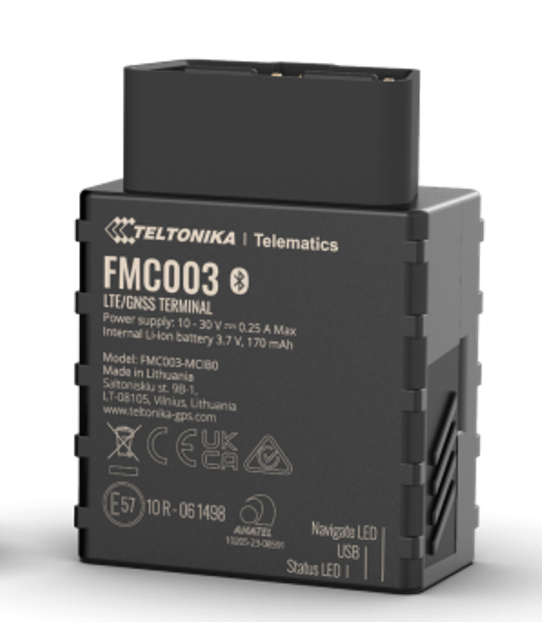

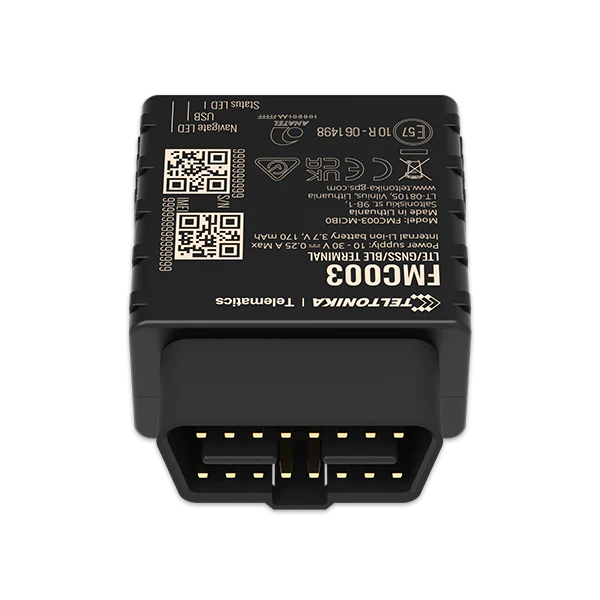

Teltonika FMC003 OBD 4G GPS Tracker – CAN BUS Reading – Read engine RPM, Fuel level, Fault Codes etc

European Plug & Play GPS Tracker Teltonika FMC003 4G Tracking Device with Bluetooth

NO INSTALLATION NEEDED

This device is a very easy and simple to install tracking device, suitable for fleet management in all cars.

You don’t need any special knowledge to install it, just snap it into the OBD port slot that all vehicles have, and the device is ready to detect! TELTONIKA FMC003 , the smallest OBD GPS Tracker device from the leading manufacturer Teltonika, with the ability to read various vehicle information (such as fuel level, engine errors, air temperature, etc.) via CAN BUS.



The FMC003 is an ultra-small plug and play OBDII device with GNSS, GSM, BLE 4.0 connectivity and CAN bus data reading capabilities. It is an ideal tracking device (GPS Tracker) for a wide range of use cases – such as light commercial vehicle fleet management, driver logbook, insurance telematics (UBI), car rental and more.

The main feature of the Teltonika FMC003 is the standard reading of OBDII data from the vehicle’s computer (CAN BUS line). Combined with an easy and low-cost integration, it’s an easy and powerful solution. The device supports various Bluetooth low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth.



With built-in Bluetooth, it allows wireless communication with hands-free headphones and other devices, sensors via Bluetooth. You can make phone calls through the Bluetooth headset. Read the files and adjust your spots wirelessly via Bluetooth, the device accepts a Micro SD card up to 32 GB!
Teltonika FMC003 saves all data on micro SD card when driving in areas where GSM signal is not available.

Prevent your car from being stolen with advanced anti-theft Auto Geofencing every time you park and new towing detection features.

Ensure the safety of your workers with intelligent accident detection. The device will notify you with an alarm message immediately in case of an accident

It has a built-in battery and very low energy consumption in sleep mode!

The device automatically enters an Auto Geofencing security area every time you park.

In case it is moved without putting the key in the vehicle, the device will send you an SOS sms message to your mobile phone that it has been moved.

You define the geographical limits as well as the speed limit that you allow your car to move. An audible alarm and a visual indication on the computer screen immediately warns you when the vehicle will exceed this limit.

You connect and disconnect the FMC003 Gps Tracker with one movement and you can locate it with an SMS command or via the Internet in real time 24 hours 365 days a year. You don’t need a technician for the installation, it has no cables and fits all cars without any modification. Just plug it into the OBD port and it’s ready to go.





It works on GSM / GPRS networks, with a GPS satellite positioning system, it has a built-in GSM and GPS antenna.
Small and discreet device that allows you to see all the movements of the car from your computer or mobile phone









Gps Tracker mini satellite car and person tracking device





The device can monitor the driving behavior of the Green Driver. (Sharp turns, sharp braking, spins, tight turns, etc.) Click here to see the Video and how it works.





With the BTAPP Mobile application you can monitor the driver’s driving behavior in real time via Bluetooth from your mobile phone and receive notifications about possible violations in real time

You will be able to monitor the driving behavior of the driver regarding fast acceleration, sudden braking, excessive speed, etc.

Click here to download the app for Android phones



Click here to download the instructions for use in English

Click here to download the flyer in English

Click here to download instructions for debugging the device through your Android smartphone in English.

Click here to download the Bluetooth device connection instructions in English

Click here to see the Video how to set it up

Fleet management Integrated tracking solutions with European device

• TECHNOLOGY

• GNSS i Global positioning system/Global Navigation Satellite System.
• GPRS i General Packet Radio Service (GPRS) is a packet oriented mobile data service based on the 2G technology.
• SMS i Short Message Service (SMS) is a text messaging service component.
• Bluetooth i Bluetooth is a wireless technology standard for exchanging data over short distances.



• HARDWARE

• 1x Micro-SIM card i Allows to put 1 Micro-SIM card for internet connection
• Internal GSM antenna i An antenna used for GSM connectivity. Integrated into FM device PCB. Does not have an external connector.
• Internal GNSS antenna i An antenna used for GPS connectivity. Integrated into FM device PCB. Does not have an external connector.
• OBD II connector i Allows to connect the tracker to vehicle OBDII port
• DIN – digital input – 1 i Digital Inputs allow device to detect logic states 1 (enabled) or 0 (disabled).
• Accelerometer i Accelerometer allows the device to indicate if the vehicle is
  moving or not, as well as measure acceleration.
• Battery – 170mAh Li-ion 3.7V i Allows device to work without external power source
• IP41 i Protected from tools and small wires, condensation.
• 1MB memory i Internal memory for records storing when there is no GPRS connectivity.
• Micro SD i Micro SD card slot for records storing when there is no GPRS connectivity.
• 10 – 16V i External voltage range
• USB 2.0 Interface i Device accessible and configurable via USB

• • FIRMWARE

  • NITZ time synch. i Network Identity and Time Zone (NITZ) is a mechanism for provisioning local time and date, time zone and DST offset, as well as network provider identity information, to mobile devices via a wireless network.
  • Configuration over Bluetooth i Configuration over Bluetooth gives the ability to configure the device remotely by using a Bluetooth connection.

  • Ignition detection i A vehicle ignition detection function, based on a configured ignition source (External power voltage, Digital input 1 or Movement).

  • Geo-fence i A functionality, which generates an event when crossing a defined area. It can be used to detect wherever a car enters or leaves customized areas

  • Sleep/Deep sleep i Working modes which let FM device to reduce power consumption and save vehicle battery.
    – In sleep mode, FM device turns GNSS module off and it is not saving or sending new periodic data records.
    – In deep sleep mode, FM device sets GNSS receiver to sleep mode and turns off GSM/GPRS module, although periodic records with last known coordinate are being saved and sent to server.
  • Overspeeding detection i This scenario helps to prevent from exceeding fixed speed and inspects driver if needed. Digital output 1 is controlled by scenario for user needs, to manage buzzer, LED etc. During overspeeding event Digital output 1 will be turning ON and OFF until speed is lower than configured Max Allowed Speed.
  • FOTA i Firmware over the air solution. The software is used to send firmware/configuration to FM device via GPRS network.

  • GPRS commands i It is possible to send commands to FM devices using GPRS. GPRS commands can be used for sending configuration, debug, digital outputs control commands etc. These commands should be coded into a special codec12 format.
  • Green driving i Helps to prevent and inspect drivers about harsh driving. This functionality works in parallel with accelerating force, braking force and cornering angles. Every hard drive event can be presented in real time during the LED or buzzer notification.
  • Jamming detection i Jamming detection informs the driver with buzzer or LED about radio jamming events.
  • NTP time sync. i Network time protocol (NTP) is used to get the right time without GPS connection. This functionality gives an ability to monitor the device state in real time.
  • SMS event i SMS event is a special functionality which is used to notify the user about the tracker initial state. Any changes of speed, engine status, over speeding or etc. will be informed with SMS.
  • Idling detection i The Idling detection functionality allows the User to monitor the engine working time without initial speed.
  • Crash detection i Crash detection functionality is generating the record when the device detects a car accident using the internal sensors (Accelerometer).
  • Odometer i Odometer is used to calculate traveled distance and produce this information directly to server.
  • Trip detection i Trip detection is used to inform the user about start and stop points in the dedicated location, while the engine is on or off.
  • Towing detection i Towing detection feature helps to inform the User about car deporting. The quick event will be sent to the server while towing is detected.
  • Integrated scenarios i The integrated device scenarios are used to simply enable the dedicated functionality like Green driving, Over speeding, Authorized driving or Immobilizer.
  • Remote configuration over SMS i The remote configuration via SMS gives an ability to configure the device via SMS
  • Offline tracking i Offline tracking is used to track the object position while GPRS is not activated.
  • Auto Geofencing i Auto geofencing can detect wherever car enters or leaves customized areas with deactivated ignition.
