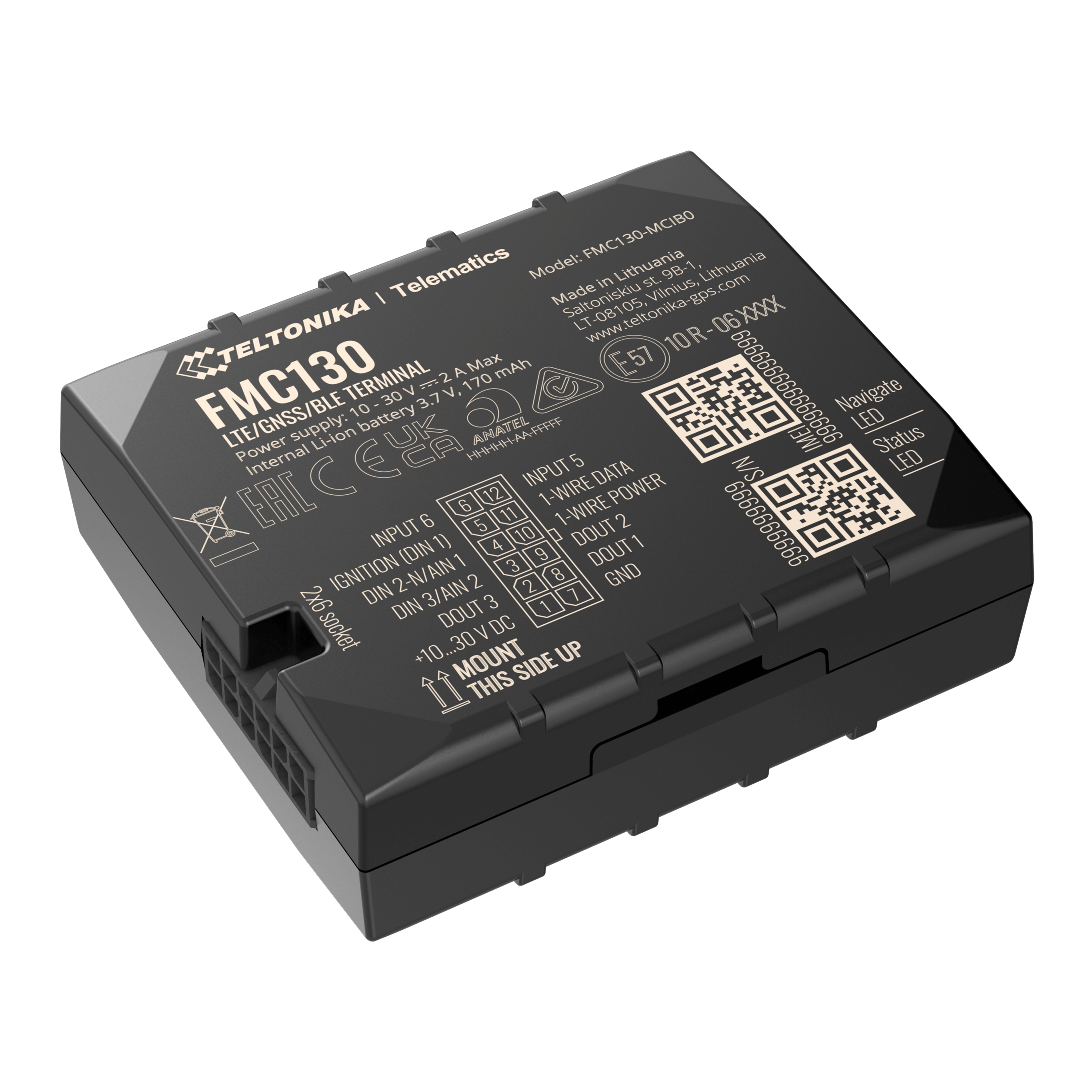

Teltonika FMC130: Advanced LTE European GPS Tracker
Take your fleet data to the next level with the Teltonika FMC130, the professional-grade 4G LTE Cat 1 tracker designed for complex business needs. This “Advanced” series device goes beyond simple location tracking by offering deep vehicle integration through CAN bus support. Whether you’re managing heavy machinery or a corporate fleet, the FMC130’s flexible inputs—including negative and impulse inputs—make it the perfect tool for monitoring everything from fuel flow meters to door sensors and seatbelts.
Key Features & Benefits
-
📡 Multi-Network Coverage – Future-proof 4G LTE Cat 1 with reliable 3G and 2G fallback for uninterrupted global roaming.
-
⛽ Precision Fuel Monitoring – Connect to CAN adapters or use impulse inputs for highly accurate fuel consumption data on heavy equipment.
-
🔌 Flexible I/O Options – Features 3 digital inputs, 3 digital outputs, and a negative input to simplify the installation of complex accessories.
-
🏢 Enterprise Ready – Built-in support for iButton and RFID for authorized driver identification and secure fleet access.
-
🛡️ Anti-Theft Features – Integrated immobilizer, towing detection, and unplug alerts to keep your vehicles safe 24/7.

Reading fuel, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses, and special machinery
![]()
Technical Specifications: Teltonika FMC130
The FMC130 is an advanced 4G LTE Cat 1 terminal with flexible inputs and CAN bus support, designed for complex fleet management scenarios.
Core Module & Connectivity
| Feature | Specification |
| Model Variants |
FMC130-ME1: MeiG SLM320-E1 (EU/Asia)
FMC130-ME3: MeiG SLM320-E2 (Global/EU)
FMC130-MCIB0: MeiG SLM320-LA (Latin America) |
| Technology | LTE Cat 1 / 2G (GSM/GPRS) / GNSS / Bluetooth® LE |
| 4G LTE Bands |
ME1: FDD: B1/B3/B5/B7/B8/B20; TDD: B38/B40/B41
ME3: FDD: B1/B3/B7/B8/B20/B28; TDD: B38/B40/B41
LA: FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28; TDD: B40 |
| 2G Bands | GSM: B2/B3/B5/B8 |
| Data Speed |
LTE FDD: Max 10Mbps (DL) / 5Mbps (UL)
LTE TDD: Max 8Mbps (DL) / 2Mbps (UL) |
GNSS (Positioning)
-
Constellations: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
-
Receiver: 33 tracking / 99 acquisition channels
-
Accuracy: < 2.5 m CEP
-
Sensitivity: -165 dBM
-
Start Times: Hot < 1s | Warm < 25s | Cold < 35s
Power & Battery
-
Input Voltage: 10–30 V DC (Overvoltage Protection)
-
Back-up Battery: 170 mAh Li-Ion, 3.7 V (0.63 Wh)
-
Power Consumption: * Ultra Deep Sleep: < 3 mA
-
Nominal: < 33 mA
-
Peak (Full Load): < 250 mA
-
Advanced Interface & I/O
-
Digital Inputs: 3 (Input 2 can be used as Negative Input)
-
Digital Outputs: 3
-
Analog Inputs: 2
-
Impulse Inputs: 2 (Digital Input 1 & 2)
-
Specialized Ports: 1-Wire interface, CAN Adapter Input
-
Dimensions: 65 x 56.6 x 20.6 mm
-
Weight: 61 g
-
Protection: IP41
Smart Features & Software
-
Scenarios: Green Driving, Jamming Detection (SLM320 models), Immobilizer, iButton Read, Fuel Counter, Crash Detection, Excessive Idling, Towing detection.
-
Fuel Monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle.
-
Ignition Detection: Digital Input 1, Accelerometer, External Voltage, Engine RPM.
-
Bluetooth® 4.0 + LE: Supports Temperature/Humidity sensors, OBDII dongles, and Barcode Scanners.
Certification & Approvals
-
Global Compliance: CE/RED, E-Mark, EAC, RoHS, REACH, CITC, RCM, IMDA, Anatel, JATE, TELEC, SIRIM QAS, SDPPI POSTEL, KC, ICASA, SUTEL.
